MiCWL Built-in speaker President Delegate Digital Conference Microphone Mic System A350M-A05

MiCWL Built-in speaker President Delegate Digital Conference Microphone Mic System A350M-A05

U.S.$ 0.00
Product Description

Professional Table Digital Meeting Room Wired Conference Microphone Mic System

19" Rack Mountable Design Host

Desktop Gooseneck Microphone Built-in speaker  (Used to extend the conference sound)

(1 Host Support up to 60pcs table Mic, please contact us if you need more Delegate Unit Microphone.

add 1 power extension host can with 60 tabe microphone.  Max. 1 host support to 250pcs table mic.  )

Package includes:

(1)   1x A350M Host

(2)   A05 President + A05 Delegate  table Microphone.

(3)    AC-DC adapter
(4)    Manual.

(4)     10m Cable.

A350M Series
Conference System Product Description:
Convenient, hand-held conference system A350M series, without a central processor. A35M host is the core of the entire system. The system can accommodate up to 60 speakers, and the external PA system can be used for voice amplification. It has microphone auto-off function (microphone open, no sound input for more than 40 seconds, auto close). 2 meters long 8-P262 DIN connection cable, there is an auxiliary audio signal output and recording output, easy to connect other devices.
System Features:
1. double-goose neck design can be noted in the direction of need, easy to install quickly. The indicator light on the gooseneck microphone indicates the status of the microphone.
2. unique audio processing circuit to improve the clarity of the entire system.
3. hand-held cable connection, the microphone connection is simplified, the entire system installation on the required works and costs can be reduced.
4. expansion and change the configuration is easy, it is with 4 way Output, each channel way can connect 20 microphone. a host total can connect 60 conference microphone unit,
5. Chairman unit can use the priority button (Priority) to control the speaking order, control the atmosphere of the meeting.
6. with recording output connection recorder, all the recordings can be completely sound preservation, but also external sound amplification equipment.
Technical Parameters:

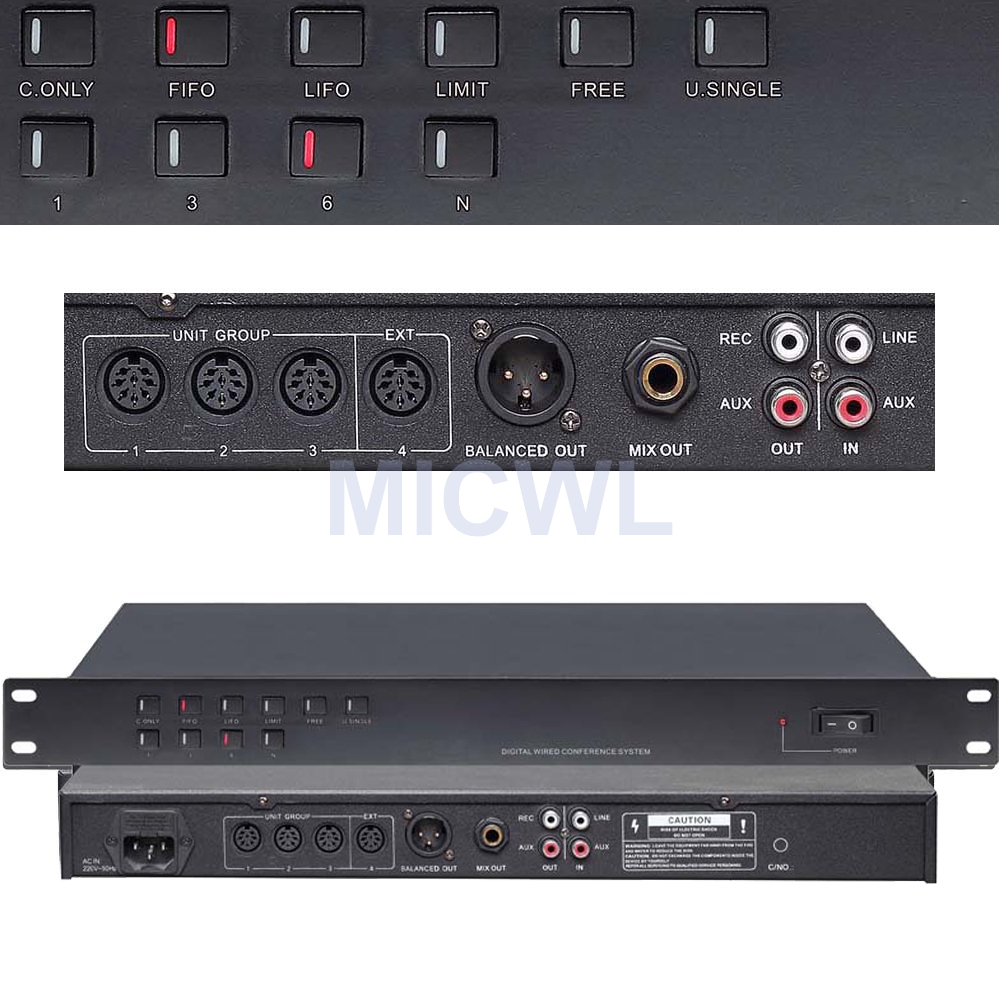

Model: A35M0 Host

· Digital integrated circuit technology, low power consumption, high fidelity, very stable;
· Six speaking modes: Chairman-specific, first-in first-out, first-in, first-out, restricted speaking, open mode, overwhelming;

· Four kinds of speakers can be selected, including: 1, 3, 6, N (optional). According to the speech mode, the number of speakers can be freely selected and the number of intelligent recognition speakers is designed.
·  Host with USB recording port, hot plug and plug, can be used to match the commonly used electronic products.

* Start the self-test function, all the button lights flashing again, the connection status is not normal when the host beep;

· Intelligent power failure memory function, can remember the program running state; if the accident power, the power is restored to the last time set;

· With touch-button control panel, you can set the speech mode and the number of speakers;

· Equipped with audio balanced output, 6.3 output port, background audio input and output RCA interface, recorder interface;

· Each system host is recommended to connect up to 60 conference microphone units, with 4 series output, each channel can be up to 20, each plus a power extender can access more than 60 microphone unit.

· Power supply: AC 100-250V ~ 50 / 60Hz
Rated voltage: 100Hz-12.5Hz
Output impedance: REC: 200Ω LINE: 200Ω
            BALANCE: 300Ω
            UNBALANCE: 400Ω
· Input impedance: LINE: 50KΩ PBIN: 50KΩ
· Signal to noise ratio: 100dB (1KHz THD1%)
· Chassis size: 480 × 44 × 220 mm
· Accessories: 10m 8P shielded wire

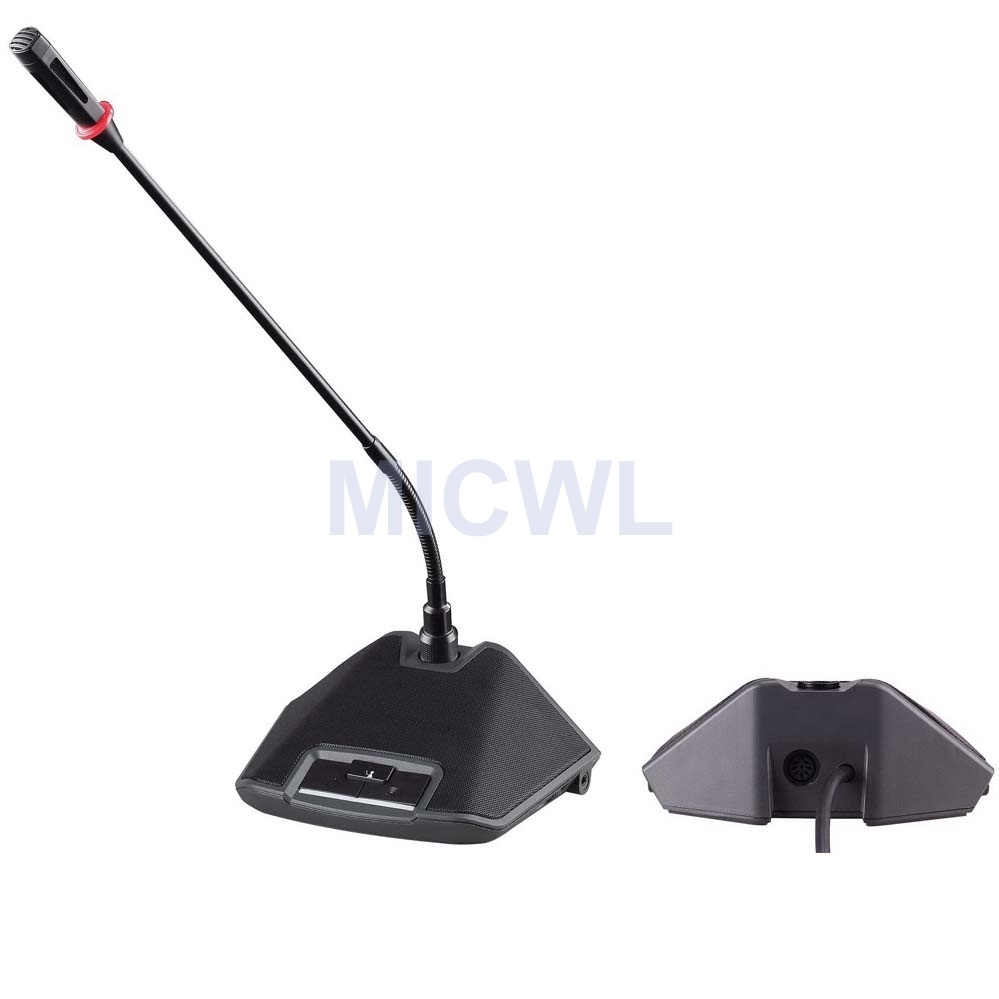

A05 Table Model: Chairman unit and Delegate unit Microphone
· Meeting tube with hose and hard tube design, flexible adjustment to meet the use of different personnel;

The chairman unit has a unique priority button to close the delegate unit that is speaking, to control the order of the venue, and there is no restriction between the chairmen.

The chairman unit has the right to speak on behalf of the delegate.

· Unique speaker net design Built-in speaker, can be used for conference loudspeakers and play conference background music.

The right side of the design of the volume control knob, you can adjust the volume size.

Both sides of the design have 3.5 audio output and input interface, access equipment can replace the conference microphone to speak and listen to other members of the meeting to listen to the content.

Metal base, durable, beautiful appearance, fashion, do not fade, no deformation.

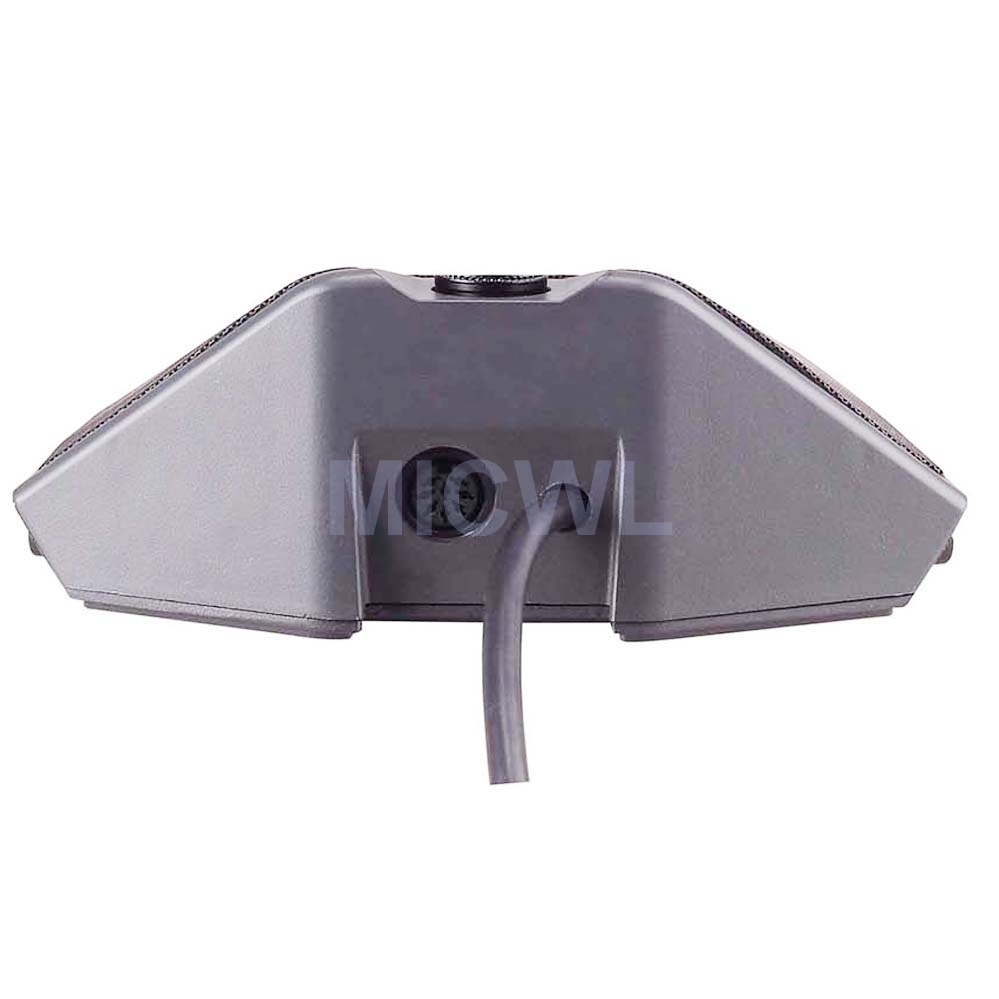

· Conference unit support hot-swappable function, comes with 2.1 m 8P cable; Handle connection mode, easy to install, flexible operation.
Type: Capacitive:
Directivity: single directivity
Frequency response: 30Hz-18KHz
Sensitivity (: -43 ± 2dB @ 1KHz
· Input voltage: DC 9V (host power supply)
· Minimum input impedance: 1KΩ
· Signal to noise ratio: 68dB (A)
· Output socket: 2.0M 8P terminal block
· Input wire: 2.0m 8P shielded wire
· Accessories: wind sponge
