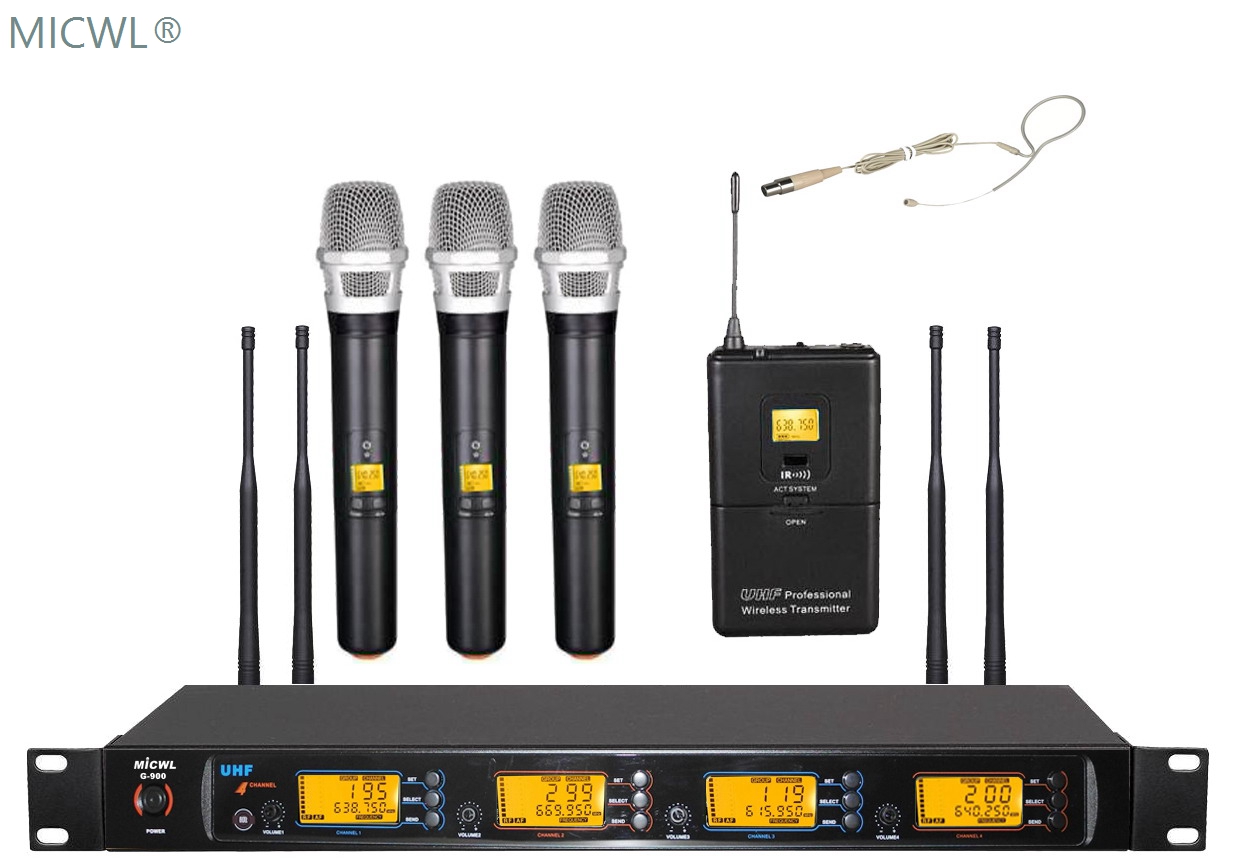

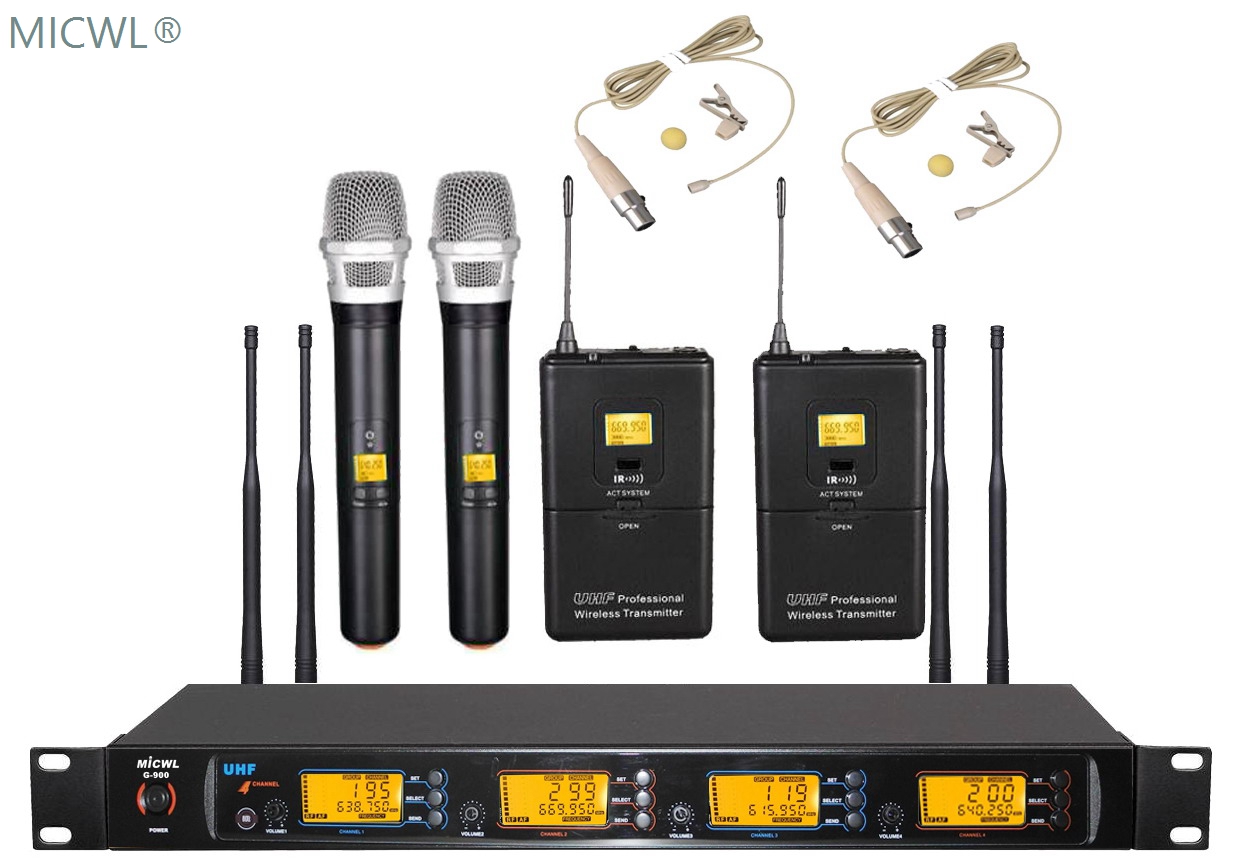

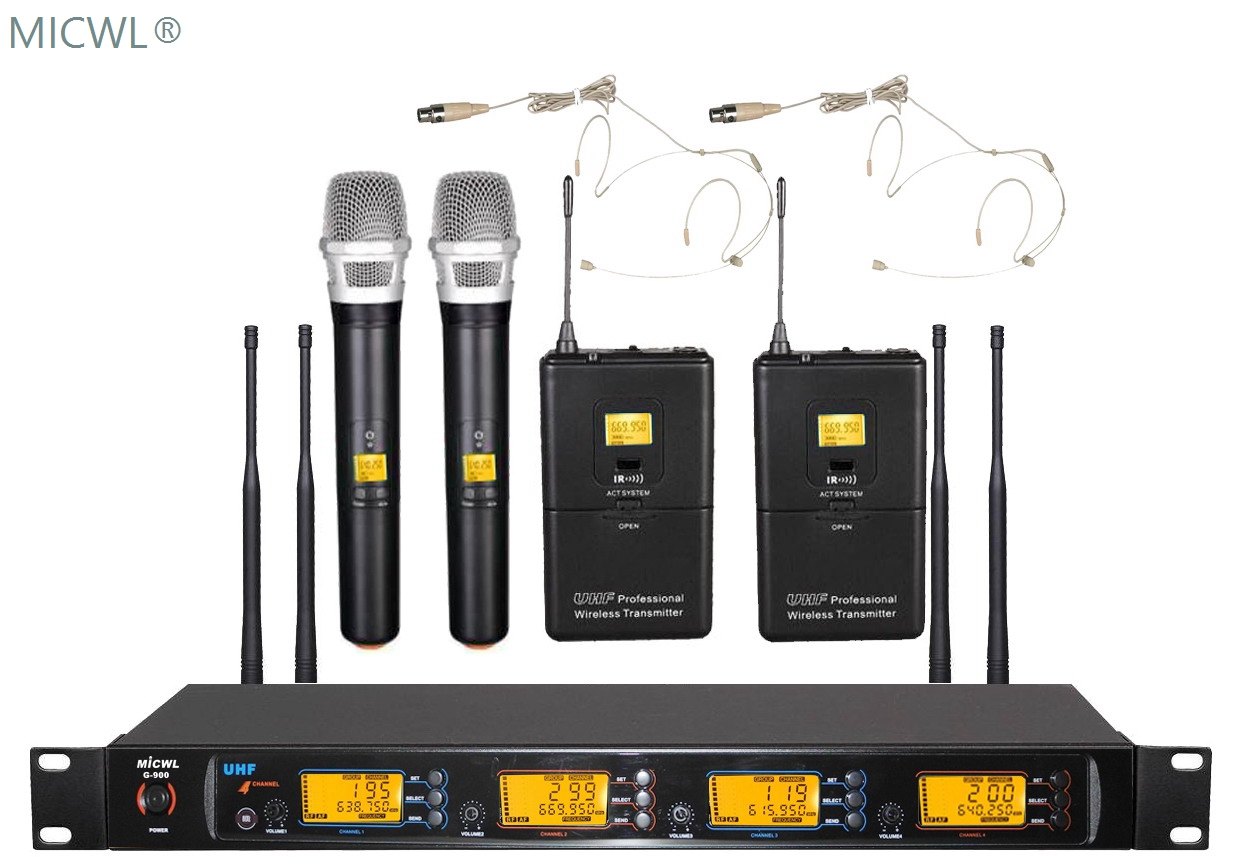

MiCWL G900 4 x 100 Channel frequency adjustment Wireless Handheld Headset Lavalier Microphone System

MiCWL G900 4 x 100 Channel frequency adjustment Wireless Handheld Headset Lavalier Microphone System

U.S.＄ 0.00
0.00

Product Description
Introduction: The series of dual-frequency-locked four-channel wireless conference microphone. Products with less noise interference UHF double-locked circuit design, the perfect anti-noise interference characteristics, any similar systems are unmatched. Full metal material standard chassis, 1U metal panel configuration four-channel receiver, assembled LCD display screen, show the working channel, the operating frequency. Fully, quickly and easily understand all the action message receiver. The hosts were balanced audio output jack, and the mixed unbalanced outputs, fully adapt to a variety of connectivity needs.





Product details:


Professional wireless microphone system


Receiver parameters (receiver parameter)


Oscillation mode (Oscillation): quartz crystal oscillator (quartz crystal)


Frequency range (Carrier Ferquency Range): UHF 610.00MHz - 670.00MHz  ( Comply with CE and FCC frequency rules)


Frequency stability (Frequency Stability): ± 0.001%


Maximum frequency offset (Max.eviation Range): ± 50KHz


Modulation scheme (Modulation Mode): FM


Signal-to-noise ratio (S / N Ratio):> 100dB


The distortion (T.H.D): <0.5% at 1KHz

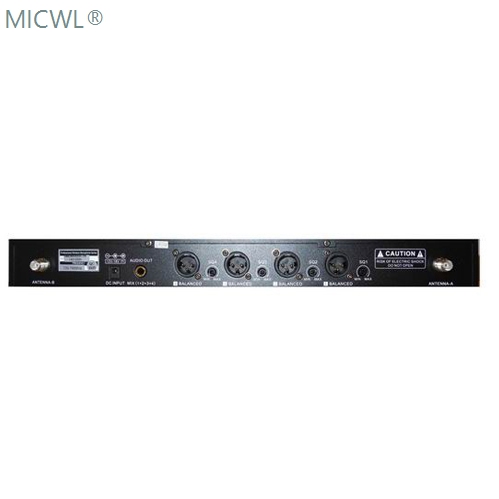

Audio Plug: XLR + Jack


Antenna Plug :  2 BNC , 50Ω


Sensitivity (Sensitivity): 1.2/UV @ S / N = 12dB


Power Supply (Power Supply): DC: 12V ~ 18V/800mA


About Weight:1.2kg






Transmitter parameters :


Carrier frequency (Carry a frequency): UHF 610.00MHz - 670.00MHz  ( Comply with CE and FCC frequency rules)


Frequency stability (Frequency stability): ± 25KHz


Signal-to-noise ratio (S / N Ratio):> 105dB


Adjacent channel interference ratio (F / N Ratio):> 80dB


Dynamic Range (Dynamic range): ≥ 100dB


Type (Type): capacitive (capacitance)


Polarity mode (polar psttern): single point resistance (One direction)


Frequency response (Frequency Response): 40Hz ~ 20KHz


Microphone sensitivity (Sensitivity): -47 ± 3dB @ 1KHz


Working By 2xAA battery



Package includes:

(1)  4 Channel 4 LED UHF Receiver

(2)  Handheld or Bodypack with  microphones.

(3)  AC-DC adapter ( 110V or 240V universal )

(4)  6.5mm audio cable

(5)  4x Antenna
