MiCWL SKM9000 Dual Channel Wireless DJ Karaoke Microphone System
with SKM 9000 Handheld
Large Range UHF Wireless Karaoke DJ Microphone
Large LED Digital Display Receiver
Best Sound Quality and Superlarge Range
Large LED Digital Display Receiver
MSRP: $2499.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
1.Frequency range 610 ~ 670MHz
2.The number of channels of channels is 100 frequency points per channel.
3.Oscillation method DSP chip frequency lock
4.Frequency stability ± 10ppm
5.RF power 10dbm
6.Audio frequency ring 40 ~ 18000Hz
7.Disctional degree ≤0.5%
8.Receive sensitivity -95 ~ -71dbm
9.Audio frequency ring 40 ~ 18000Hz
10Signal to noise ratio ≥90db
11.Audio output 300MV (maximum) 1. Infrared frequency frequency
12. You can use multiple sets of stack machines at the same time
13. Easy to enter
14. Automatic frequency search function
15. One -click -to -frequency
16. Various output channels
17. Use distance 100-300 meters
18. Microphone power consumption of 130mA, the use of 1.5V AA * 2 rechargeable battery-powered, continuous use for more than 8hours;
19. Reception can use a key to prevent the whistle function to enhance the sound pressure, singing and speech when it is easier to
enter the microphone;
20. Audio and data using 32bit encrypted transmission and independent ID code, effectively prevent crosstalk and interference;
21. Transmitter and receiver using 8bit encryption infrared transmission synchronization;
22. The receiver can observe the transmitter’s battery operating state at a glance;
23. Use high-fidelity moving coil microphone, so that your voice more beautiful.
Product details:
Professional wireless microphone system
Receiver parameters (receiver parameter)
Oscillation mode (Oscillation): quartz crystal oscillator (quartz crystal)
Frequency: UHF High Frequency 610.00MHz - 670.00MHz ( Comply with CE and FCC frequency rules)
Number of Frequencies: 2 Channel x 100selectable UHF frequencies
Frequency stability (Frequency Stability): ± 0.001%
Maximum frequency offset (Max.eviation Range): ± 50KHz
Modulation scheme (Modulation Mode): FM
Signal-to-noise ratio (S / N Ratio):> 100dB
The distortion (T.H.D): <0.5% at 1KHz
Audio Plug: 2 XLR + 1 Jack
Antenna Plug : 2 BNC , 50Ω
Sensitivity (Sensitivity): 1.2/UV @ S / N = 12dB
Power Supply (Power Supply): DC: 12V ~ 18V/800mA
About Weight:1.2kg
Transmitter parameters :
Frequency: UHF High Frequency 610.00MHz - 670.00MHz ( Comply with CE and FCC frequency rules)
Number of Frequencies: 2 Channel x 100selectable UHF frequencies
Frequency stability (Frequency stability): ± 25KHz
Signal-to-noise ratio (S / N Ratio):> 105dB
Adjacent channel interference ratio (F / N Ratio):> 80dB
Dynamic Range (Dynamic range): ≥ 100dB
Type (Type): capacitive (capacitance)
Polarity mode (polar psttern): single point resistance (One direction)
Frequency response (Frequency Response): 40Hz ~ 20KHz
Microphone sensitivity (Sensitivity): -47 ± 3dB @ 1KHz
Working By 2xAA battery

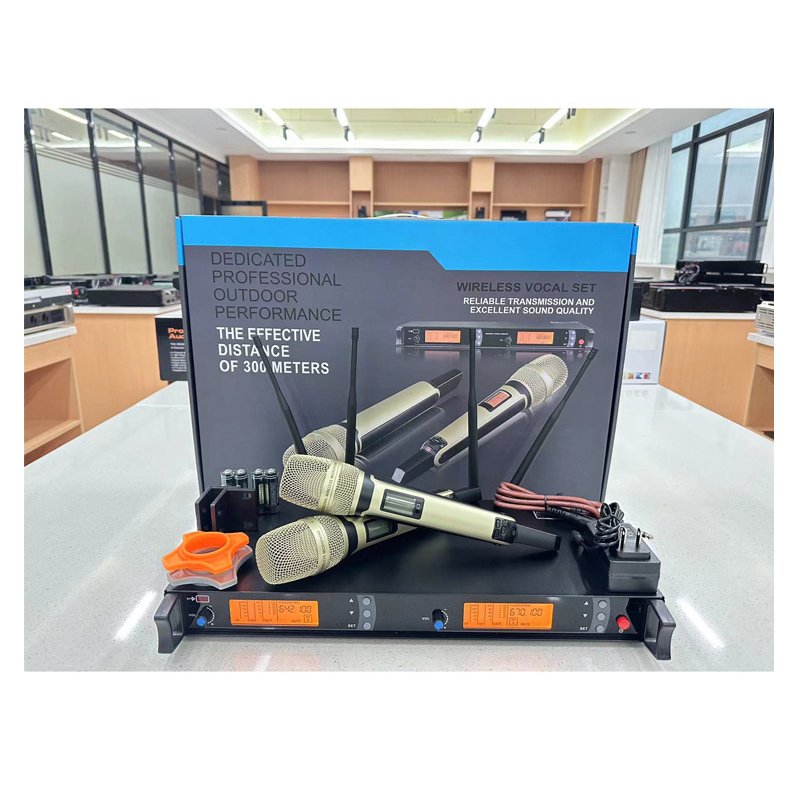

(1) 2 Microphone Channel Digital Receiver Host ,
(2) 2 Handheld Microphones
(3) 1x 1/4" plug Audio Cable,
(4) 1x AC-DC adapter ( 110V - 240V universal ),
(5) 4x Antenna ,
(6) 1x Manual.
