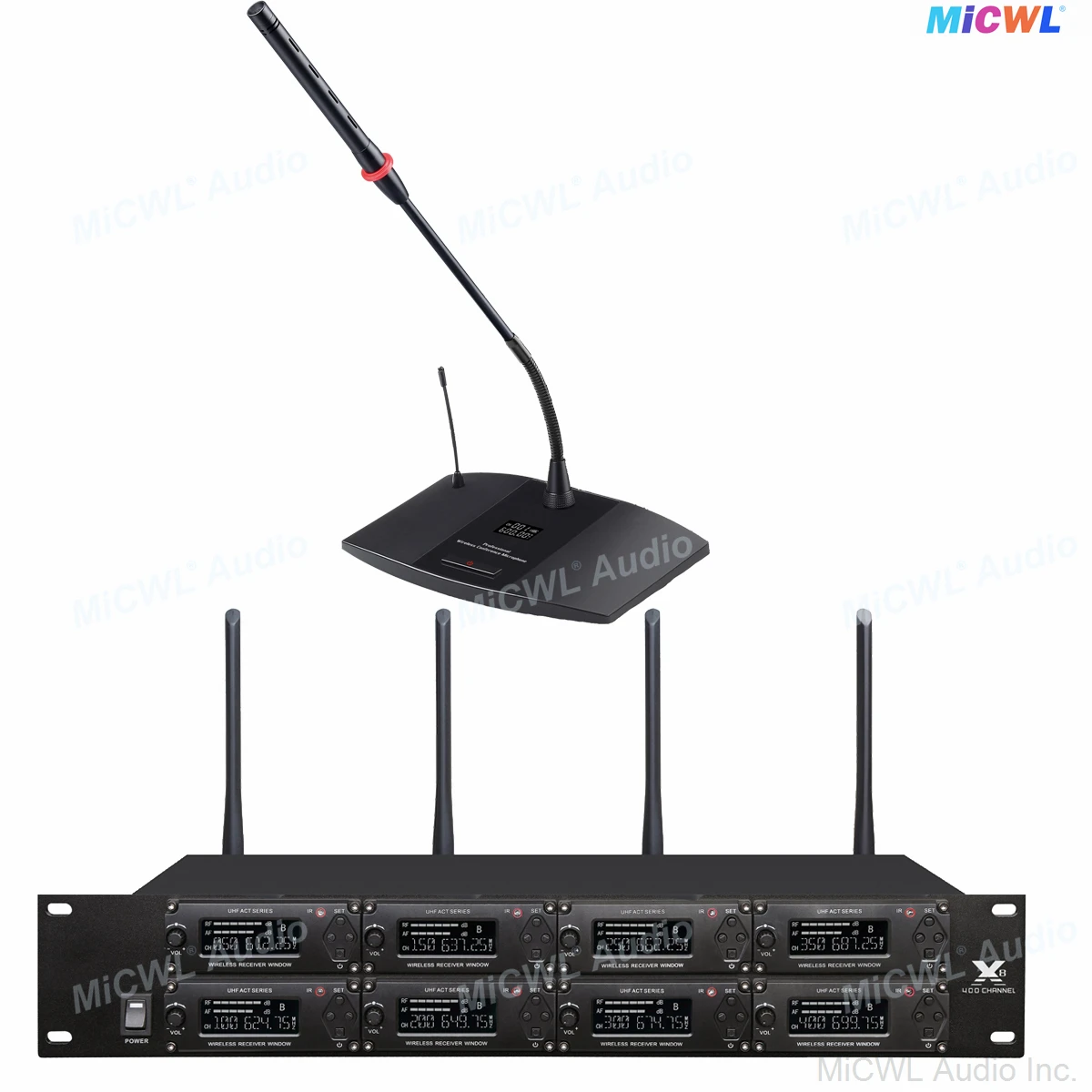

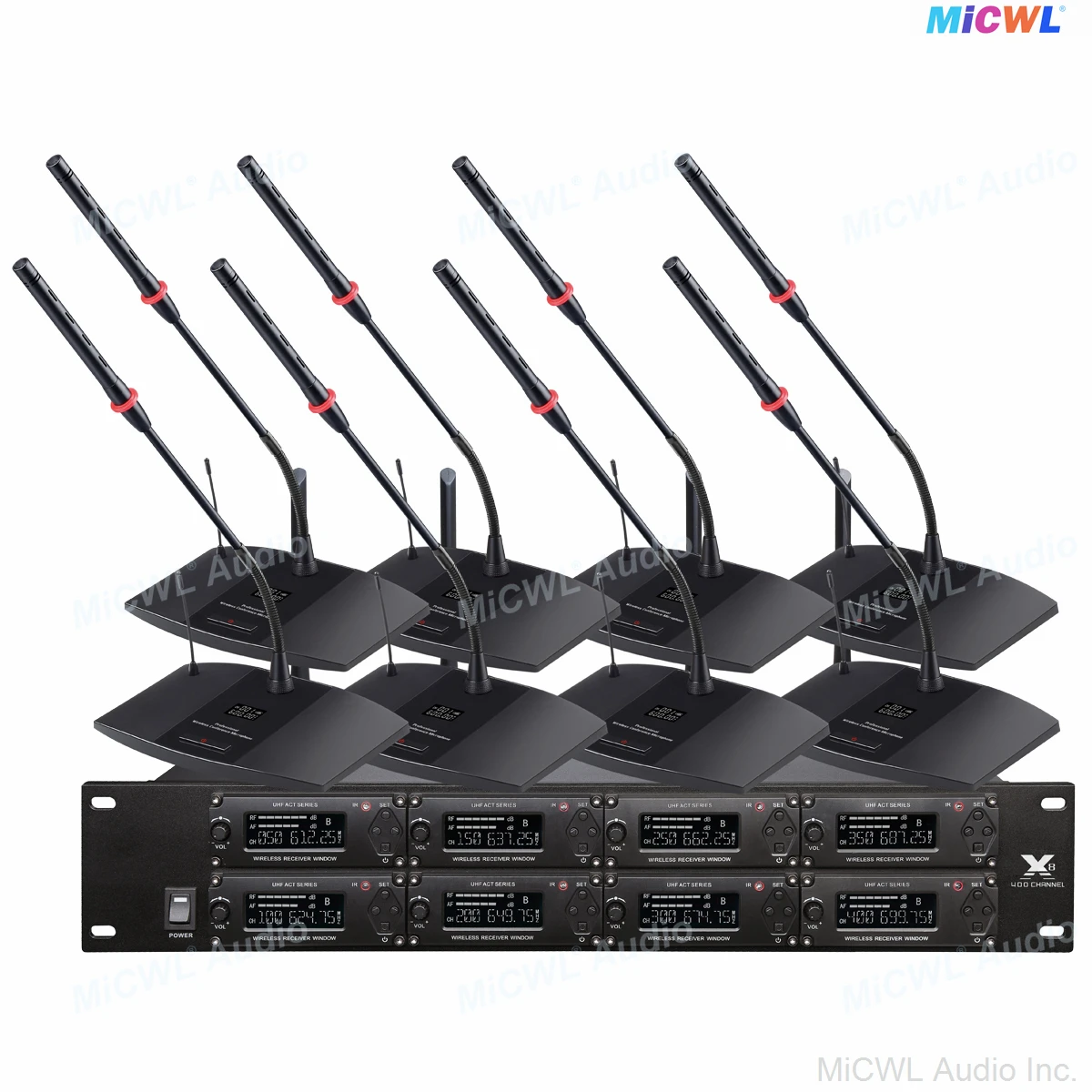

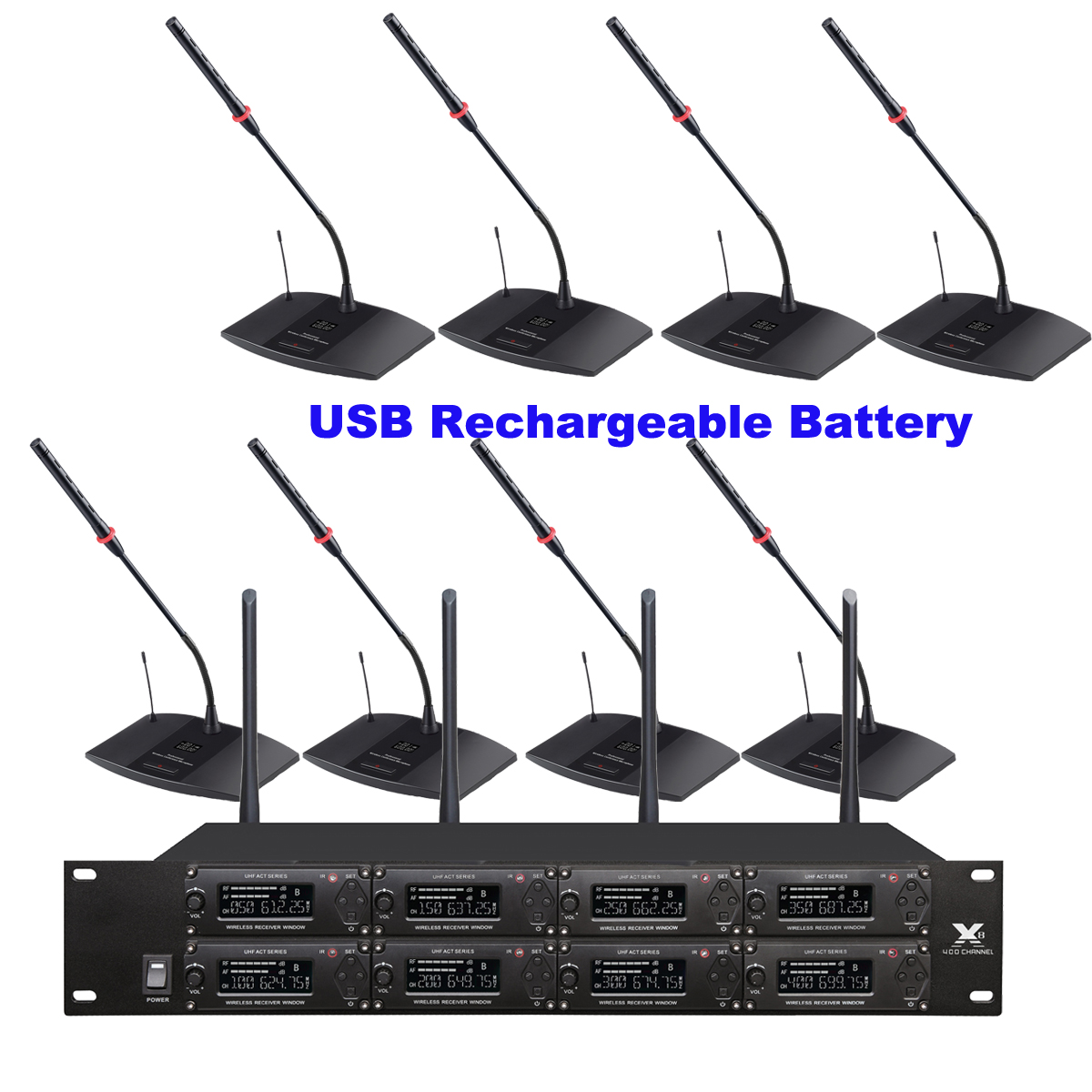

X818 Series Wireless Digital Conference Discussing Microphones
2 U 19" Rack Mountable Design Host
Built-in Rechargeable Battery 3.7V Table Unit
Rechargeable Convention Discussion MIC
with 8 Destop Microphone
- Desktop LED Display Screen
MSRP: $39999.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
MiCWL X818 Rechargeable Table Wireless System Description:
1. 8 Microphone Channels to receive signals, each channel has 50 channels to choose from, each channel at 0.25MHz step; 12.25MHz per channel;
2. Adopt infrared automatic frequency matching technology, oscillation mode: phase-locked loop frequency synthesis;

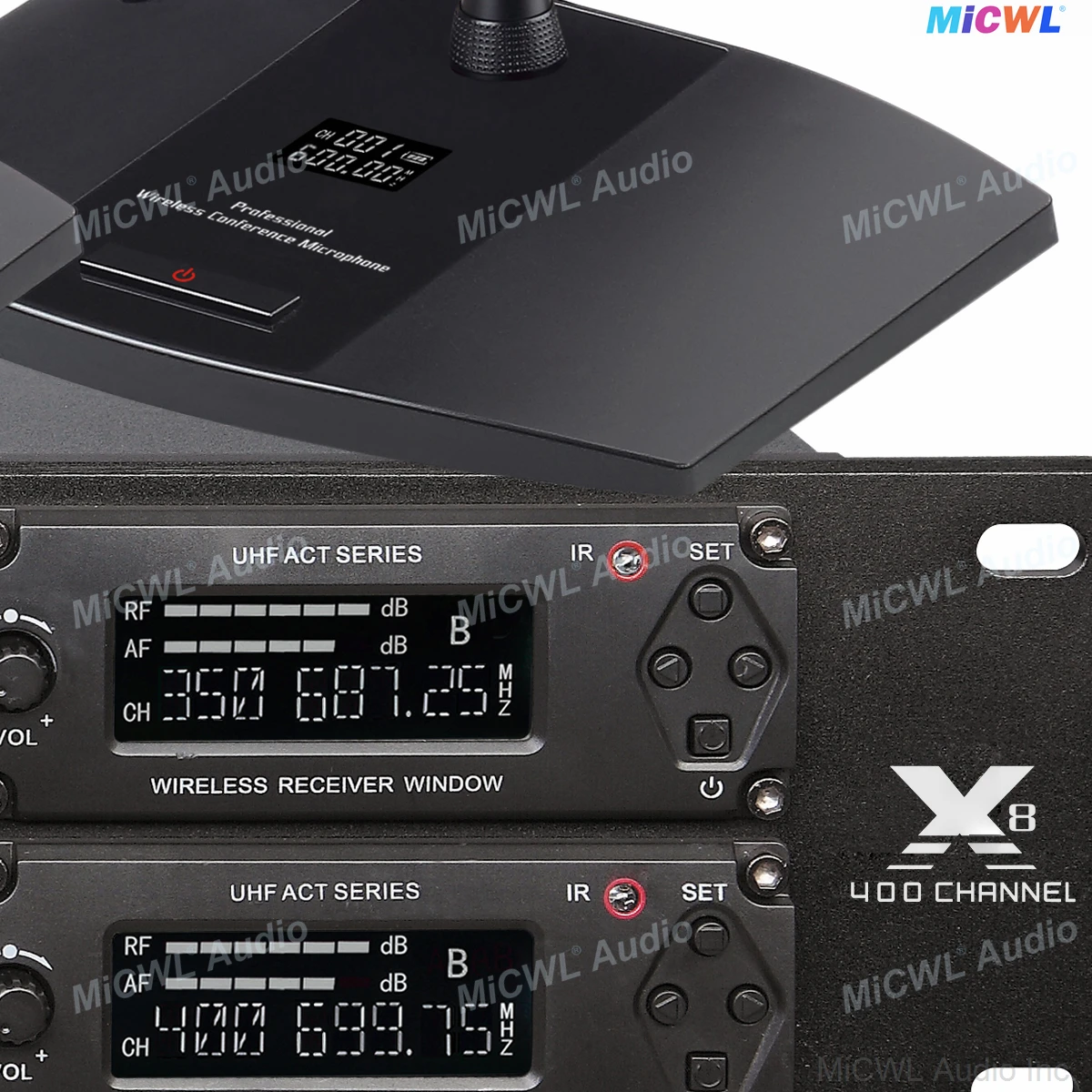

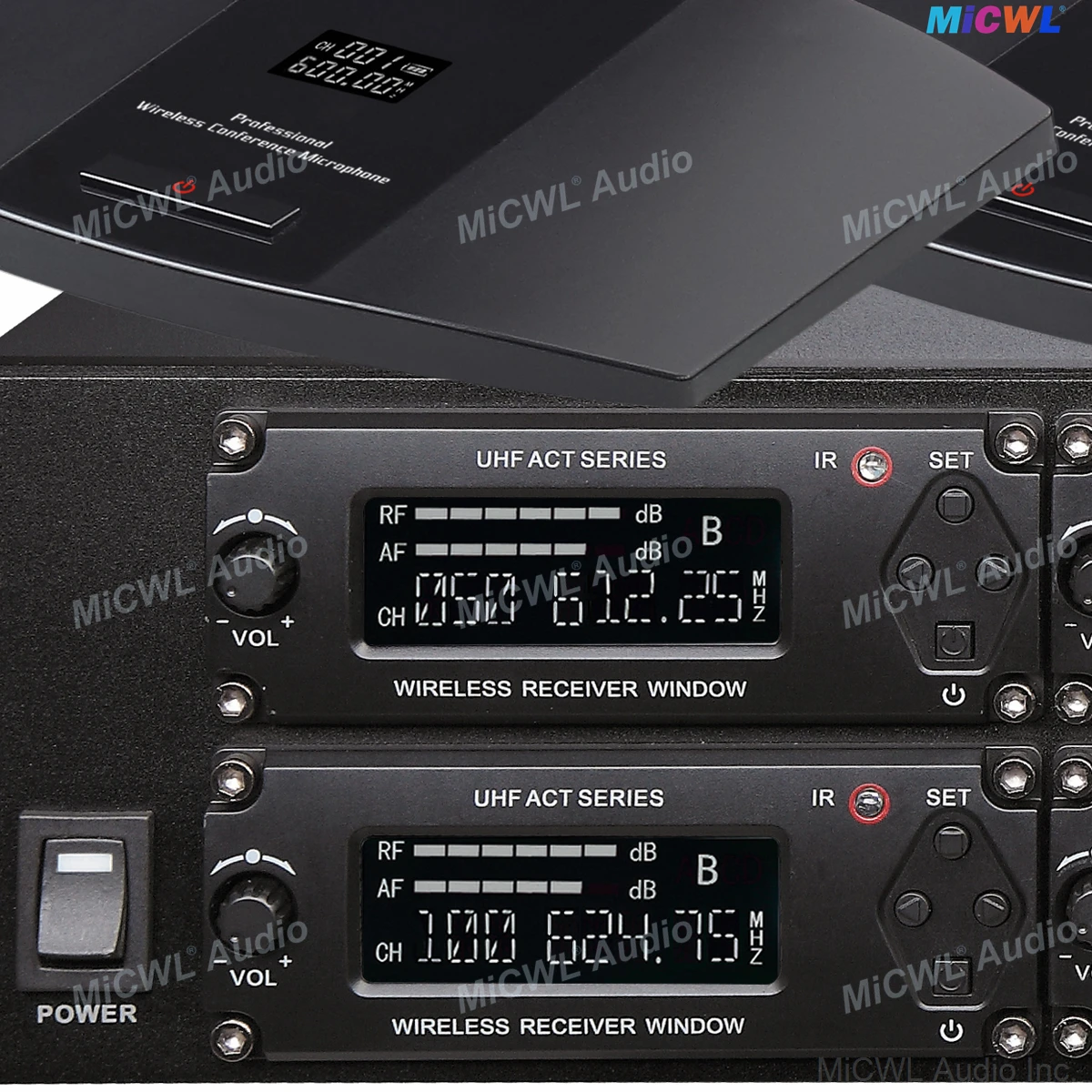

3. Transmission signal in UHF band, frequency range: 500MHz-900MHz;4. For the same occasion, 10 sets of machines can be used at the same time, 10 receivers and 80 transmitters can be used at the same time;5. Each channel is equipped with an independent window, LCD screen displays the working channel, working frequency point, received signal, audio signal, each channel is equipped with
Independent volume control knob, infrared frequency signal lamp, one-key frequency control button, frequency adjustment button, channel power switch button;

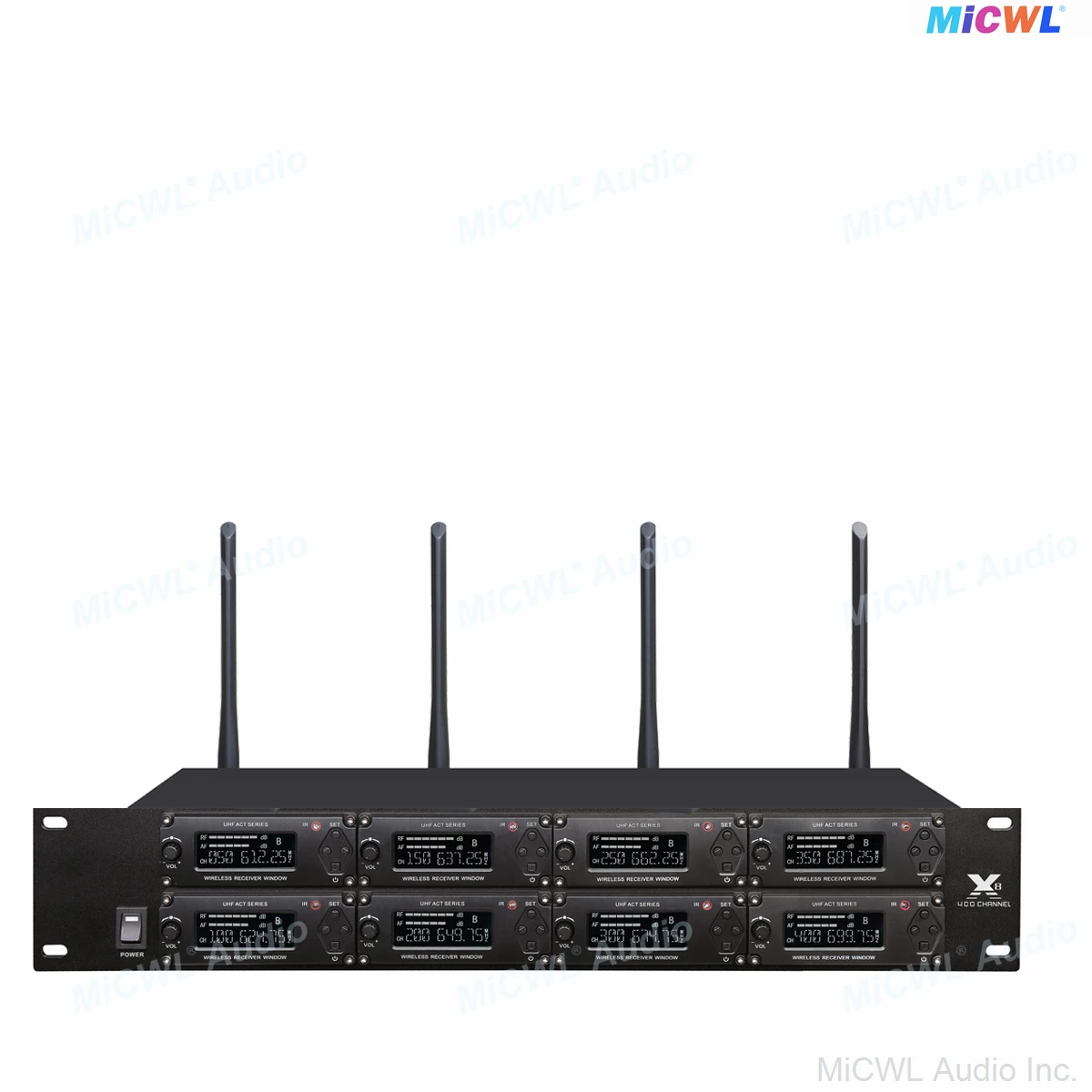

6. Four rubber receiving antennas are set on the back of the receiver to enhance the received signal with decent appearance;
7. The back is equipped with 8 balanced output and 1 mixed non-balanced output, suitable for connecting various external equipment;8. No longer limited to a single transmission can only be paired with a single channel, the same transmission can be interused in eight channels 400 channels, showing the humanized high-tech design;

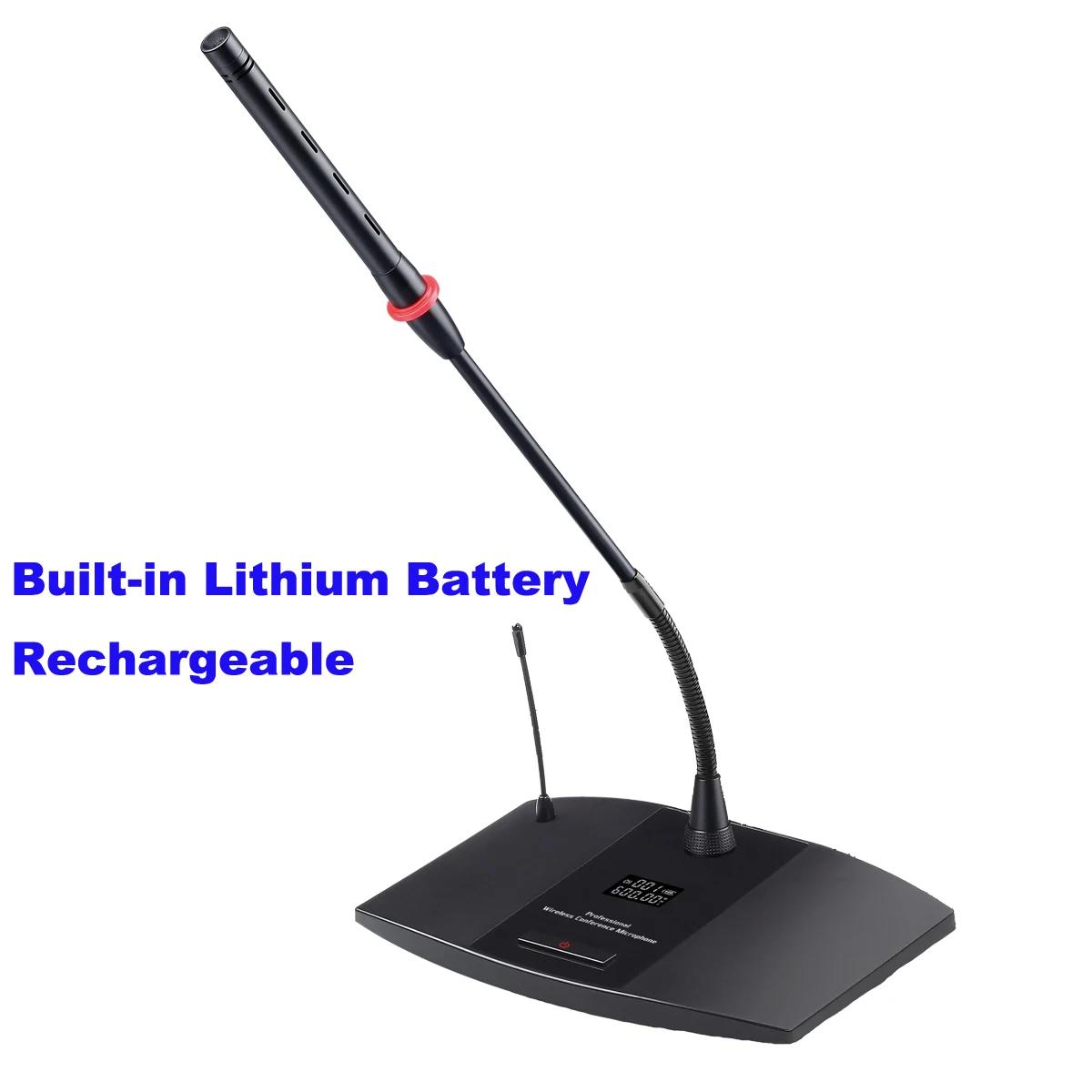

9. High fidelity single directional capacitor core, sound restoration, high clarity, low noise;10. The power consumption of the Gooseneck Table microphone is 80mA, and the built-in 3.7V, 2100mA large capacity lithium battery is used to power it, which can be used continuously for 30 hours;11. External small antenna design, more stable reception, effectively increase the receiving distance;
12. Use distance: open environment: 120-300 meters complex environment: 80-150 meters
13. Suitable for all kinds of meetings and speeches.
14. * Anti-electromagnetic, mobile phone interference function;
UHF Digital Receiver parameter : Oscillation Modes: PLL syntheized Frequency Oscillation Carrier Ferquency Range: UHF 500MHz to 900MHz Frequency Stability: ±0.001% Maximum frequency deviation (Max.eviation Range) : ±50KHz Modulation Mode (Modulation Mode) : FM Signal to noise Ratio (S/N Ratio) : > 105dB Distortion degree (T.H.D) :< 0.5% @ 1 KHZ Sensitivity: 1.2/ Uv-@s /N=12dB Power Supply: DC:12V to 17V Audio Output: Free standing 0 ~ 400mV Mixed style 0 ~ 300mV
Gooseneck Desotop : Power Supply: Built-in lithium battery 3.7V The microphone consumes an electricity quantity: 100mA Carry a frequency: UHF 500MHz ~ 900MHz Frequency stability: ±25KHz Signal to noise Ratio (S/N Ratio) : > 105dB Adjacent frequency interference Ratio (F/N Ratio) : > 80dB Dynamic range: ≥100dB capacitance (in effect) polar psttern: One direction Frequency Resonse: 40Hz ~ 20KHz Sensitivity: -45±2dB@1KHz
(1) 1x MiCWL X818 Wireless Digital Conference Receiver
