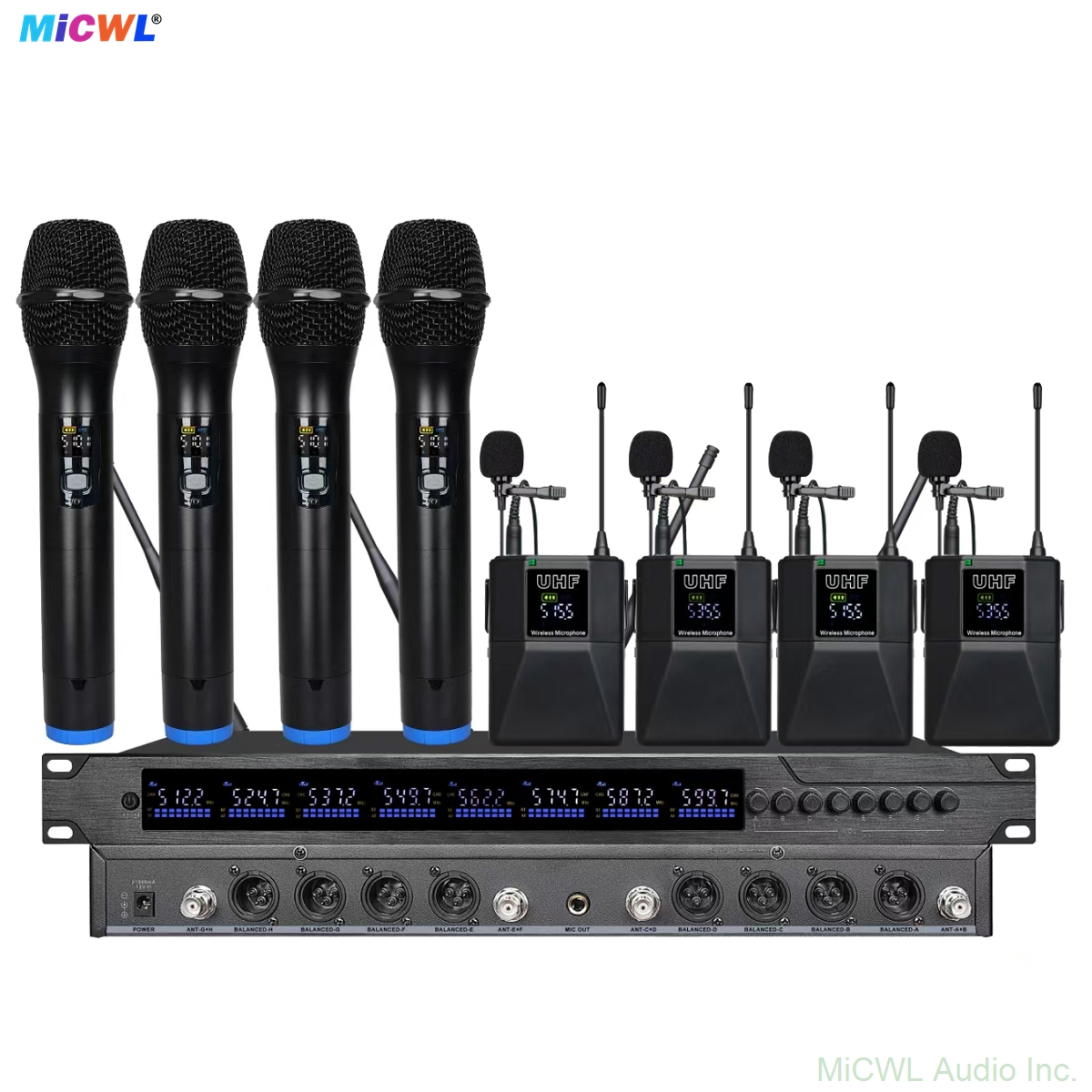

MiCWL G8000  Adjustable Frequency Wireless 8 Channel Microphone System

Professional UHF Audio Wireless Microphone System


Stage Studio 4 Table / 4 Handheld / 4 Headset / Lavalier Microphones

MSRP: $2499.00

Brand New - Original Packaging

Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

1. Eight -channel receiving, UHF frequency band, PLL digital frequency

2.200 groups can be selected frequently, 15 units can be used at the same time, hand -mounted, strong anti -interference ability

3. Launch LCD display channel and battery power

4. Receive LCDs of each channel respectively displaying: frequency channel, radio frequency strength, mute, and antenna in the antenna

5. Applicable to stage, conference hall, KTV private room, etc.

System indicators:

Frequency range: 640-690MHz

Mission method: Broadband FM

Tune range: 60MHz

Number of channels: 300

Channel interval: 200kHz

Frequency stability: within ± 0.005%

Dynamic range:> 105db

Maximum frequency bias: ± 45kHz

Audio response: 40Hz-18kHz (± 3dB)

Comprehensive signal -to -noise ratio:> 110db

Comprehensive distortion: ≤0.2%

Work temperature: -25 ℃-+40 ℃

Receiving machine indicator:

Receiving machine method: secondary frequency conversion super poor difference

Input power: 5W

Mid -frequency ** Mid -frequency: 110MHz, the second medium frequency 10.7MHz

Wireless interface: BNC/50Ω

Sensitivity: 12 dbμV (80dbs/n)

Sensitivity adjustment range: 10-32dBμV

Miscellaneous suppression: ≥95db

Maximum output level: +10 DBV

The launcher indicator:

Apertsene: wearing a transmitter using 1/4 wavelength whip -shaped antenna, holding a microphone

Built -in antenna

Packing include:

(1) 8 Microphone Channel Digital Receiver Host ,

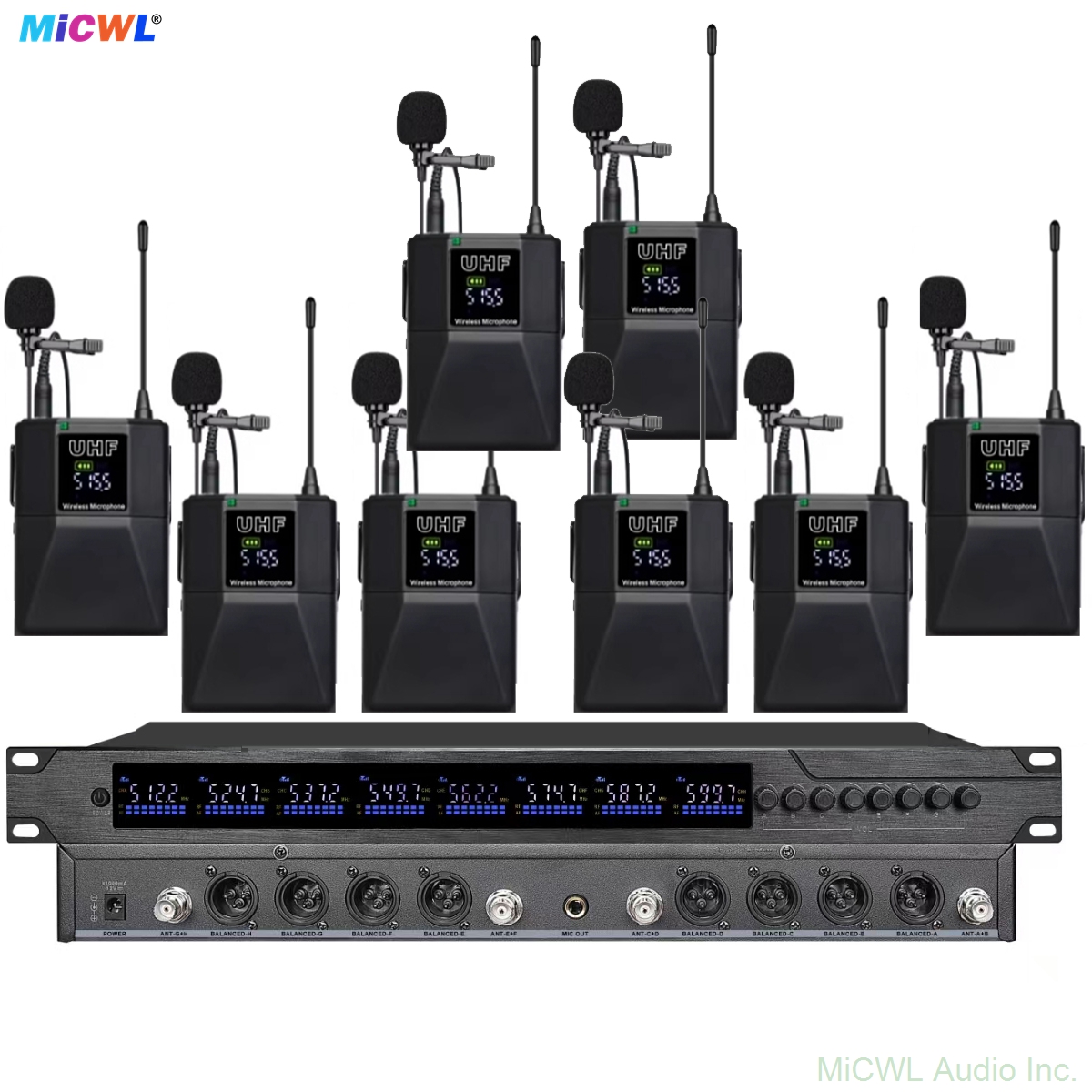

(2) 8 Handheld  / or 8 Table / or 8 BeltPack with 8 Lavalier Microphones etc.

(3) 1x 1/4" plug Audio Cable,

(4) 1x AC-DC adapter ( 110V or 240V universal ),

(5) 4x Antenna ,

(6) 1x Manual.
