Upgrade your meeting experience with the MiCWL Audio A3519 Digital Wired Conference Microphone System. This professional-grade system is engineered to deliver exceptional audio clarity in boardrooms, conference halls, and government facilities.

Key Features:

• Digital Signal Processing: Enjoy high-fidelity sound with minimal interference, ensuring every word is heard clearly.

• Elegant Gooseneck Mics: The flexible gooseneck design allows each participant to adjust the microphone to their preferred position.

• User-Friendly Interface: Each desktop unit is equipped with an LCD screen and intuitive buttons for easy control of functions like mute, volume, and priority speaking.

• Scalable Setup: The system supports a combination of chairman and delegate units, allowing you to customize the setup based on your specific room requirements.

• Robust Construction: Built with high-quality materials, this system is designed for durability and long-term reliability in high-use environments.

Package Includes:

• 1 x A351M Host Unit (1U Rack Mount)

• 1-3000pcs Desktop Units (with Gooseneck Microphones) option

• Cables for connection

• User Manual

Applications:

• Corporate Board Rooms

• Government Meeting Halls

• Training Centers

• Lecture Halls

• Conference Facilities

Technical Specifications:

• Model: A3519

• Brand: MiCWL Audio

• Type: Digital Wired Conference System

• Microphone Type: Gooseneck

• Power Supply: 48V Phantom Power

• Connection: Daisy Chain

• Frequency Response: 80Hz - 16kHz

• Signal-to-Noise Ratio: >80dB

• High-Quality Digital Audio: Advanced digital signal processing ensures clear, noise-free audio transmission for professional meetings.

• Flexible Gooseneck Design: The long, flexible gooseneck allows users to position the microphone precisely for optimal voice pickup.

• Easy Daisy-Chain Connection: Utilizes a "hand-in-hand" daisy chain connection method, simplifying wiring and reducing cable clutter.

• Durable Desktop Units: Each desktop unit features a robust base with an integrated LCD display and control buttons for easy operation.

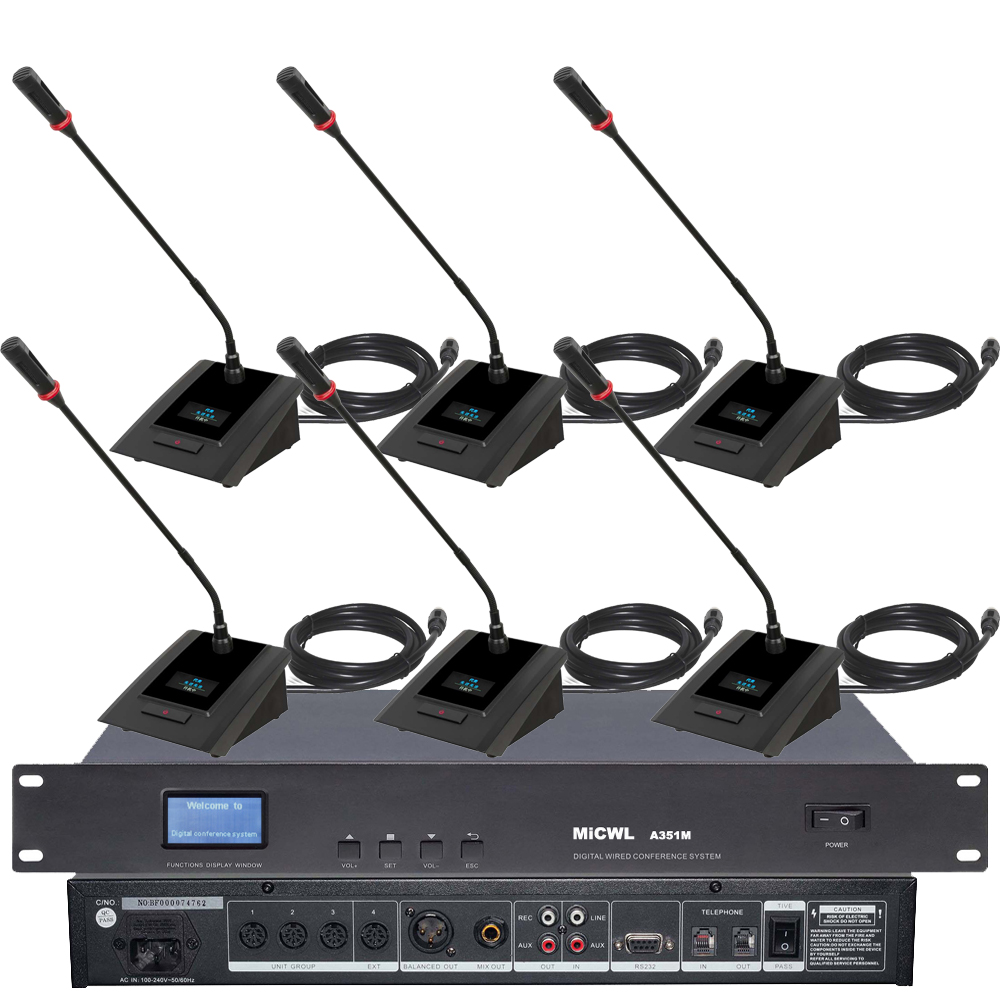

• Complete System Included: Comes with a central host unit (A351M) and multiple delegate/ chairman units, ready for immediate setup.

• Professional Phantom Power: Supports 48V phantom power for consistent performance and high sensitivity.

How to use ?

Scene 1: Professional Boardroom Setup

A modern, high-end corporate boardroom with a large wooden table. Several MiCWL A3519 desktop units are placed on the table, with their gooseneck microphones extended. A professional businessman is speaking into one of the microphones. The background should be slightly blurred to focus on the microphones. The lighting is soft and professional.

Scene 2: Close-up of the Host Unit

A close-up shot of the A351M host unit in a server rack. The LCD screen is lit up, displaying "System Ready". The MiCWL logo is clearly visible. The image highlights the build quality and professional design of the unit.

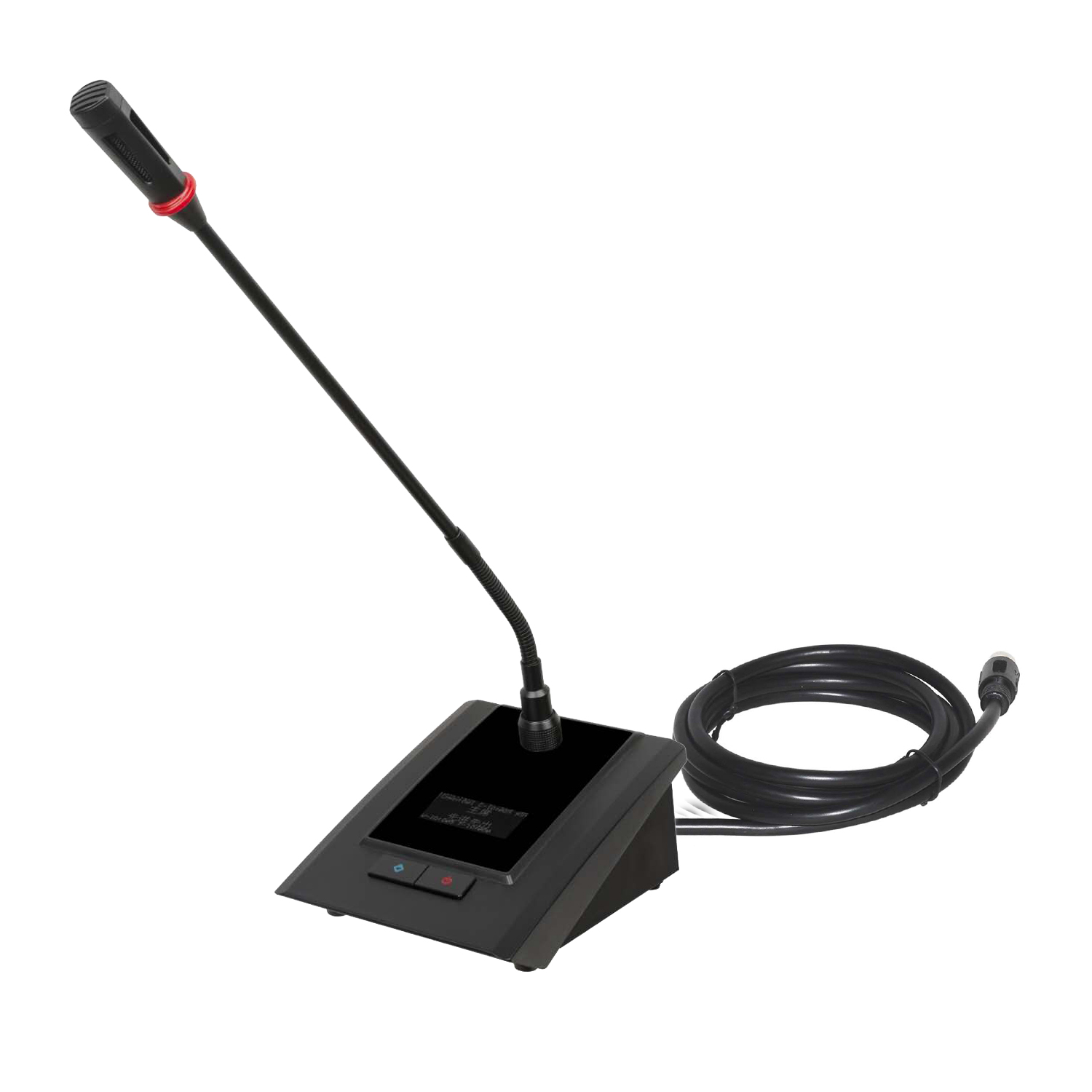

Scene 3: Delegate Unit Detail

A close-up of a single desktop delegate unit. The focus is on the microphone head and the base, showing the buttons and the small LCD screen. The image should highlight the texture of the materials and the flexibility of the gooseneck.

A351M Series Conference System Product Description:

Convenient, hand-held conference system A351M series, without a central processor. A351M host is the core of the entire system. The system can accommodate up to 60 speakers, and the external PA system can be used for voice amplification. It has microphone auto-off function (microphone open, no sound input for more than 40 seconds, auto close). 2 meters long 8-P262 DIN connection cable, there is an auxiliary audio signal output and recording output, easy to connect other devices.

System Features:

1.The panel adopts buttons to control speaking mode and the number of speakers, breaking the traditional dial control.

2.LCD screen displays working status

3.The number of speakers: 1, 2,3,4,5,6 and full opening

4.7 meeting work modes: ①chairman mode ②first in first out mode ③last in first out mode ④LIMIT mode ⑤FREE mode ⑥responder mode ⑦Apply speaking mode (just for BLS-3505C/D unit)

5.The host can connect 60 microphone units, it divide into 4 parallel outputs, each channel can connect 20 units. It also able to connect expansion unit number of extended machine up to 5000 units by power extended machine (under 255 units) or data extended machine (above 255 units).

6.Equipped with audio parallel output and a 6.3 jack output, conference recording outputs and background music inputs interface.

7.Built-in telephone coupler input and output ports, and can be used for remote telephone conference. According to the principle of communication, it divide two-way telephone voice signals into inputs and outputs. In order to control the intercom setting of phone call and set aside between the hall.

9.RS232 interface can be achieved using computer software to control entire conference system function.

Model: A351M Host

Frequency response: AC110V- 220V±10% 50Hz

Rated voltage: 100Hz-12.5Hz

Output impedance:

REC:200Ω LINE:200Ω

BALANCE: 300Ω

UNBALANCE: 400Ω

Input impedance: LINE:50KΩ PBIN:50KΩ

S /N Ratio: 100dB (1KHz THD1%)

Size:480*220*85mm

Weight:5.5KG
