1. Wide compatibility with Sennheiser G series wireless microphone systems: Specifically designed for the entire Sennheiser G2, G3, and G4 UHF wireless microphone series, it perfectly matches SKP, SKM, EK and other transmitting and receiving devices, enabling plug-and-play functionality without complex settings, and easily enhancing signal reception performance.
2. Enhanced signal reception range and stability: Equipped with a high-gain active amplification circuit, it effectively boosts RF signal strength, significantly extends the working distance of wireless microphones, reduces disconnections, noise, and signal loss, ensuring stable transmission in stages, performance venues, or meeting rooms.

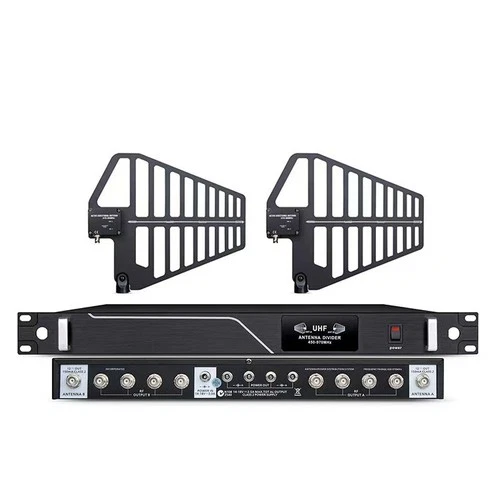

3. Supports signal distribution for simultaneous connection of multiple receivers: Features signal distribution capabilities, allowing antenna signals to be simultaneously output to multiple receivers (such as dual-channel receivers or diversity receiving systems), simplifying wiring structures, enhancing system scalability, and meeting professional multi-channel application requirements.
4. Active power supply design for continuous and efficient operation: Supports 12V DC power supply (including a power adapter), providing continuous power to the antenna amplifier, ensuring the stability of signal amplification and processing, and preventing performance degradation due to insufficient power supply, suitable for long-term professional use.
5. Directional antenna design with strong anti-interference capability: Utilizes a high-directional antenna structure, focusing on the signal reception area, effectively suppressing side interference signals, improving the signal-to-noise ratio, and ensuring clear and reliable audio signal reception even in complex wireless environments.
Features:
1.Compatible with all major brands and used by all UHF band wireless microphone receivers.
2.The on-site radio spectrum scanning and detection function provides a basis for the allocation and management of radio frequency points.
3.Directional omnidirectional, wall-mounted and other antennas with different types and performances are available.
4.High-frequency signal band-pass filtering function, filtering signals outside the bandwidth to cause interference to the system.
5.High-performance materials and circuits are used to ensure maximum signal sensitivity and port crosstalk isolation, and can provide stable radio signals for many wireless receivers.

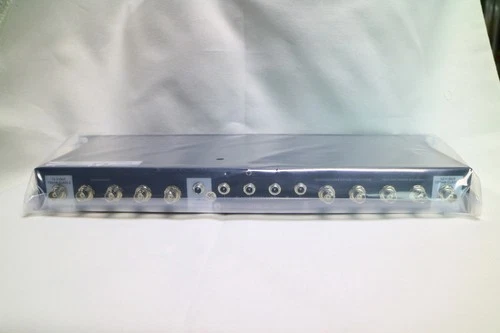

6.Two 50ohms BNC antenna cascade ports can connect an additional distribution host or a fifth wireless receiver.Each

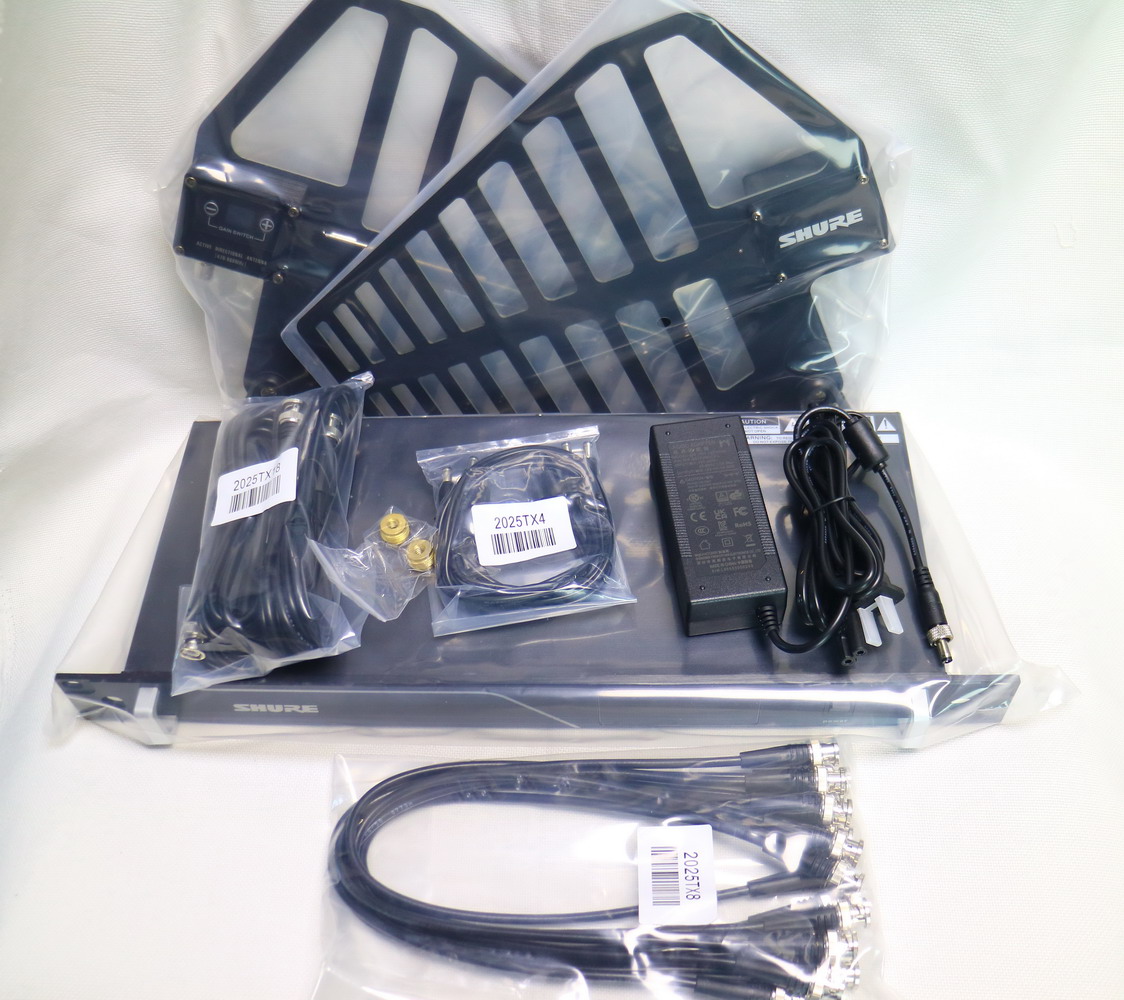

distribution host provides 4 channels of DC12V/1A power output power supply capacity. The package includes the support hardware
and high-frequency connection cable required for installing the antenna.
Technical Parameter 1:

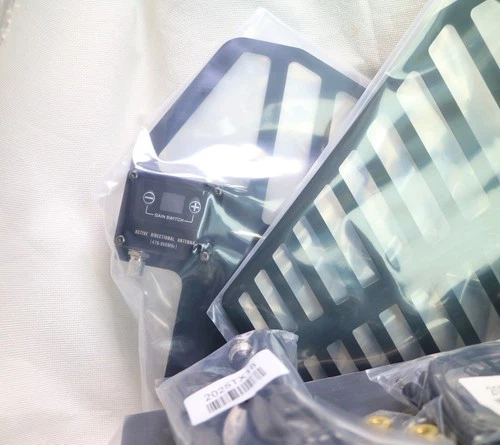

Antenna type:Logarithmic periodic direction(LPDA)
Frequency Range:470-960MHz
Interface type:BNC
Impedance:50OHMS
Gain:15dB
Directive property l:level 90°perpendicular 60°
Voltage:8~12V 75mA
Size:320x300x28mm
Technical Parameter 2
RF band---470-960MHz
Third-order filtering ---24dBm intersection slope
Gain -----(Distribution port 1dB)(Cascade port 0dB)
Impedance---50OHMS
RF port--- BNC
Antenna feed---12V 150mA
Power input--- DC +12V 1A
Power output--------4-port maximum DC+12V1A
Distributor size---482x44x200MM
Working temperature-(-20° -+50°)
Specifications:
Antenna Type: Logarithmic Periodic Direction (LPDA)
Frequency Range: 470-960MHz
Interface Type: BNC
Impedance: 50OHMS
Gain: 15dB
Size: 320x300x28mm
