Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

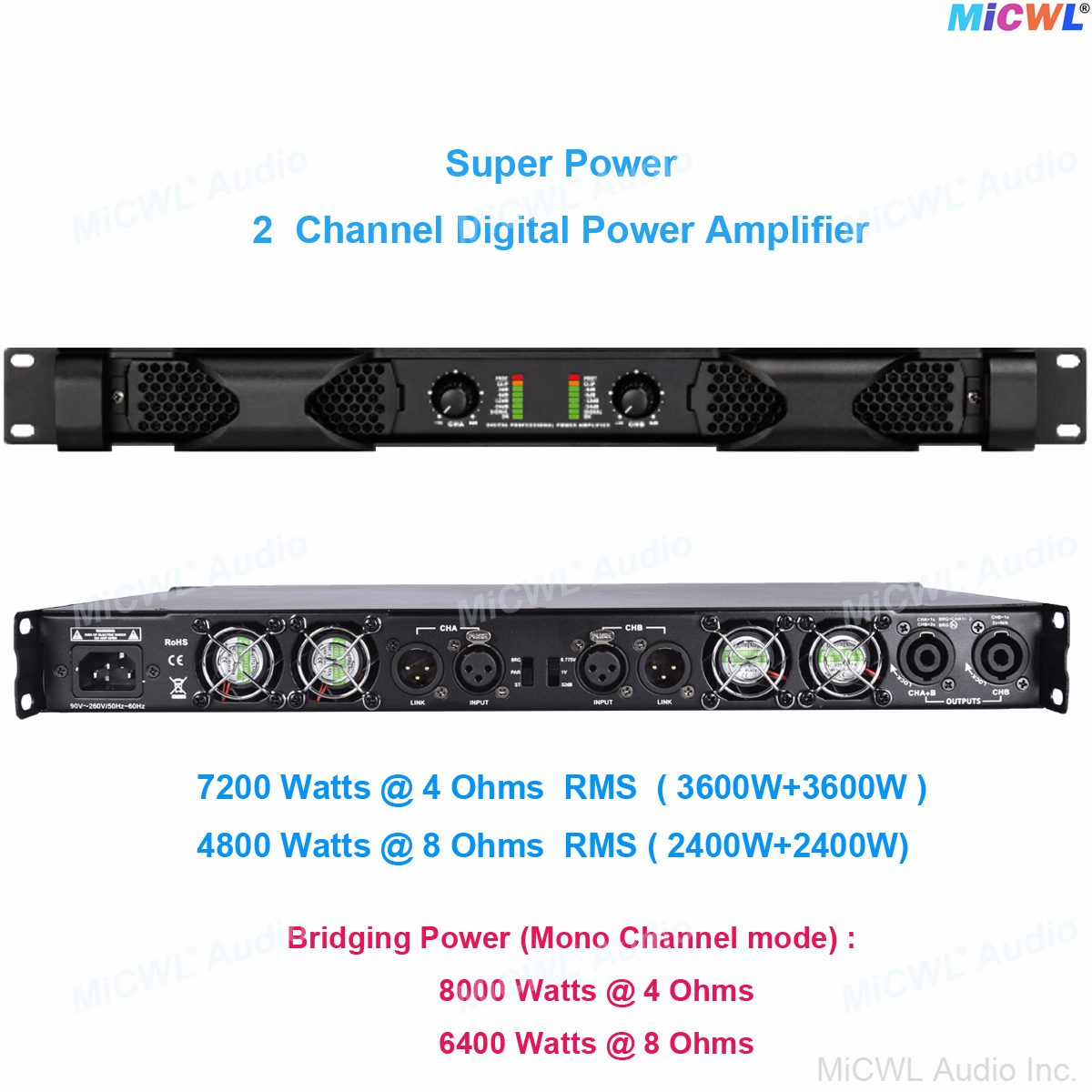

D Series PX2400 Amplifer is a Professional 2 Channel Digital Power Amplifier that was developed using the expertise of professional sound engineers, working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with the PX2400 awesome performance, flexibility and crystal clear sound quality.
◆ Ultra -large switching power amplifier ◆ The protection functions such as automatic limit output, short -circuit, overload, over -temperature, boot delay and other protection functions ◆ The power amplifier is equipped with a delay startup system, which is damaged by protecting the speaker from impact ◆ The rear panel is equipped with dual channels, ◆ Balance input interface ◆ Speakon output connector ◆ 483mm standard rack structure ◆ The power amplifier part of the switching power supply part has a separate cooling system ◆ The heat dissipation fan is controlled by advanced stepless transmission circuit ◆ 1U design, light body, easy to carry and install
2x Channel versions
7200 Watts @ 4 Ohms ( 2 x 3600W )
4800 Watts @ 8 Ohms ( 2x 2400W )
Output/output (8Ω, 1kHz): 2x2400W Output/OUTPUT (4Ω, 1kHz): 2x3600W Frequency response/FREQUENCY Response: 20Hz ~ 20KHz ± 3dB Total distortion/Total Distortion: 1%(8Ω, 350W/time) Enter sensitivity/Input Sensitivity:+4DB * (1.23V) Input impedance/input Impedance: 10kΩ (electronic balance/BALANCED) Signal ratio/S/N Ratio: ≥80dB Connecting terminal Connector: Input (CH1-2): XLR input connector; output (CH1-2): Speakon output terminal; power: AC power supply input (CH1-2): xlr input connector; output (ch1-2): Speakon Output; Power: AC Power Supply. Display light Indicator Lights: Power display light x1 (green); input display light x 2 (yellow); peak display light x 2 (red); protecting circuit action display light x 1 (red) Power Inicator x 1 (Green), input Indicator X 2 (YELLOW ), Peak Indicator X 2 (Red); Feedback Protect Indicator X 1 (Red) Power voltage/Power Supply Voltage: AC110 ~ 120V, 50/60Hz AC220 ~ 240V, 50/60Hz (using internal jump switch/via inside jumping switch) 1/8 rated movement 1/8 Rated Activity Consumed Power: 50W, 80W, 110W The temperature range of using the environment is worn tempeature range: 0 ~ 50 ℃ The humidity range of the environment is working with Humidity Range: Below 90% RH/Under 90% RH
How much Speaker can this amplifier drive:
2400W each Channel: It Can Drive 2000W or less 2400W @ 8 Ohm Sound Speaker each Channel ( 3600W @ 4 Ohm each channel) - If your speaker is no more than2400 watts, this amplifier is enough to drive.
