Product Description
- - - MiCWL Audio Inc. - - -

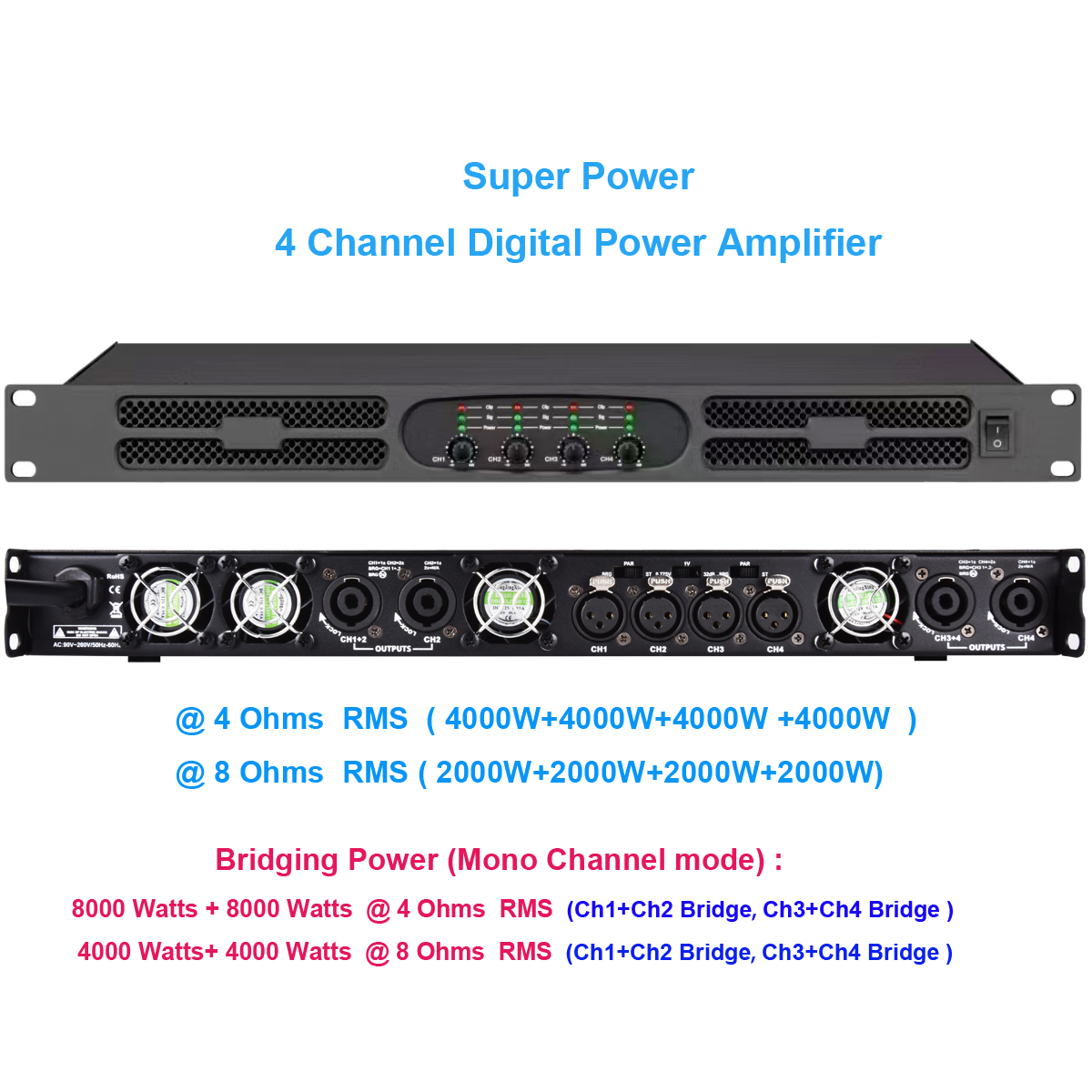

MiCWL PX10000 Power AMP Digital Amplifier Four / Dual Channel
10000W Natural Sound 2/4 Channel Power Amplifier Digital AMP 19" Rack Standard 1U Stage Subwoofer Bass
For Stage Concert Karaoke PA Audio Equipment
MSRP: $2499.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
4 Channel x 2000W versions :
@ 4 Ohms RMS ( 4000W+4000W+4000W +4000W )
@ 8 Ohms RMS ( 2000W+2000W+2000W+2000W)
Bridging Power (Mono Channel mode) :
8000 Watts + 8000 Watts @ 4 Ohms RMS (Ch1+Ch2 Bridge, Ch3+Ch4 Bridge )
4000 Watts+ 4000 Watts @ 8 Ohms RMS (Ch1+Ch2 Bridge, Ch3+Ch4 Bridge )
MICWL PX10000 Amplifer is a Professional 4 Channel Digital Power Amplifier that was developed using the expertise of professional
sound engineers,
working musicians and professional DJ's. For its price range, it's rare to find a professional power amplifier that compares with
the PX8000 awesome performance,
flexibility and crystal clear sound quality.
4x2000W versions
@ 4 Ohms RMS ( 4000W+4000W+4000W +4000W )
@ 8 Ohms RMS ( 2000W+2000W+2000W+2000W)
Bridging Power (Mono Channel mode) :
8000 Watts + 8000 Watts @ 4 Ohms RMS (Ch1+Ch2 Bridge, Ch3+Ch4 Bridge )
4000 Watts+ 4000 Watts @ 8 Ohms RMS (Ch1+Ch2 Bridge, Ch3+Ch4 Bridge )
1. MiCWL PX10000 Digital Power Amplifier and other Commercial prodcuts integrated solutions for large shopping malls, conference
hassls, transportation hubs and so on.
2. Use the world's most advanced efficient switching power supply (SMPS) and Class D power amplifier (CLASS D) design.
3. Patented design of high quality porous heat sink, in harsh environments can be normal in low temperature operation
4. adopts the imported teflon wire, ensure the transformer can normally work efficeently at high temperature.
5. Built in Digital audio processor function.
6. With volume switch,Adjustable volume
7. Full set of protection functions to ensure that the product normally working
8. With Combined signal function,Multiple amplifiers can be connected in parallel to drive multiple speakers.
PARAMETER:
Input Voltage: AC110~120V, 50/60Hz - AC220~240V, 50/60Hz
(please leave message or Choose)
XLR, Balanced Inputs
Speakon and 1/4" Outputs
Front-to-Rear Airflow and Cooling Fan
Technical Specification :
Large capacity Digital Switching Power Amplifier
Automatic limit output, short circuit, overload, over temperature, power-on delay and other protection functions
The power amplifier is equipped with a delay start system to protect the speakers from impact and damage
The rear panel is equipped with dual channels,
Balanced input interface
SPEAKON output connector
483MM standard frame structure
The switching power supply of the power amplifier part has a separate cooling system
The cooling fan is controlled by an advanced stepless variable speed circuit
1U design, light body, easy to carry and install
Output/Output (8Ω, 1kHz) RMS: 4x650W / 2x650W /2x450W / 2X1000W/2X2000W for your choose
Output/Output (4Ω, 1kHz) PEAK: 4x1300W /2x1300W / 2x900W/2x2000W/2X3500W
Distortion: <0.005%
S/N ratio: 112dB (A-weighting)
Damping coefficient: >1000
Conversion rate: 50V/us
Frequency Response/Frequency Response: 20Hz~20kHz +/-0.25dB
Total Distortion/Total Distortion: 1% (8Ω, at 600W)
Input Sensitivity/Input Sensitivity: +3dB * (0.775V)
Input Impedance: 10kΩ (electronically balanced/Balanced)
DC residual: <5mV
Connect terminal Connector:
Input (CH1-2 3-4): XLR input connector; Output (CH1-2 3-4): SPEAKON output; Power: AC power Input (CH1-2 3-4): XLR Input
Connector; Output (CH1-2 3-4): SPEAKON Output; Power: AC power supply.
Indicator Lights:
Power indicator x 1 (green); input indicator x 2 (yellow); peak indicator x 2 (red); protection circuit action indicator x 1 (red)
Power Indicator x 1 (Green), Input Indicator x 2 (Yellow ), Peak Indicator x 2(Red); Feedback Protect Indicator x 1(Red)
Power Supply Voltage:
AC220~240V, 50/60Hz / or AC110~120V, 50/60Hz (using internal jumper switch/Via inside jumping switch)
1/8 Rated Activity Consumed Power: 50W, 80W, 110W
Working Temperature Range: 0~50℃
Working Humidity Range:
Below 90%RH/Under 90% RH (But it can not be condensation)
(1) 1x Digital Power Amplifier ,
(2) 1x Power Cable,
(3) 1x Box Packing.
