SLX 100 Channel Condenser Digital Wireless Microphone
with SM28 Beige Headset Microphones True Diversity
Best Sound Quality and Superlarge Range
SLX Digital Single Channel receiver options that open the door to a full range of features, from high-performance RF to
transparent digital audio.
The SLX Single-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked control and signal routing options bring a new level of management and flexibility to your entire workflow.
Work environment :
200m Large unimpeded plaza/vocal concert ,
Complex harsh environment 100m Range (Rainy days are included)
1. True diversity, One Channel wireless handheld microphones, short circuit protection function; infrared automatic frequency matching, pilot frequency function Four antenna signal strengthened reception (multi-level high-frequency filter design has strong anti-interference ability and no noise)
2.1/2U standard chassis, metal panel, LCD liquid crystal display display working status, simple function operation.
3. High-fidelity audio transmission circuit, anti-drop, anti-vibration microphone core matching, sound clarity and high vocal reproduction.
4. Hand microphone power consumption: 110MA, using imported DC conversion boost circuit low power consumption and high efficiency, effectively extending the battery life. Radiant power: 16mW, use distance up to 500 meters in open environment. Complex harsh environment Rainy 200m Range.
5. Equipped with anti-switch impact function to ensure the protection of the output of the rear stage, and prevent the power amplifier and speakers from being impacted and burned.
6. The hand microphone has a battery level display, and the receiver also has a battery level display, which is convenient for remote monitoring of battery usage and working status at a glance.
SLX4 Digital Receiver:
Frequency range: 572-592MHZ Maximum number of channels: 100 Bandwidth: 20MHz Receiving sensitivity: -105dBm S/N ratio: >70dB(A) Distortion: <1% Audio output level: 8dBu max External power supply: DC: 12-17V, 1A, Oscillation mode: PLL phase locked loop IF frequency: first IF: 110MHz, second IF: 10.7MHz Antenna interface: TNC Display mode: LCD Sensitivity: -100dBm (40dB S/N) Spurious suppression: >80dB Audio output: unbalanced: +4dB (1.25V)/5KΩ Balance: +10dB(1.5V)/600Ω Supply voltage: DC12V Supply current: 450mA
Digital BeltPack / Handheld transmitter:
Frequency range: 572-592MHZ Band width: 20MHZ Harmonic suppression: >55dBc Maximum frequency deviation: +_45KHZ Frequency response: 40Hz-16KHz (-3dB) S/N ratio: >70dB(A) Distortion: <1%
Power requirements: 2 AA 1.5V batteries
Bodypack transmitter: Frequency range: 572-592MHZ Bandwidth: 20MHz Harmonic suppression: >55dBc Maximum frequency deviation: +_48KHz Frequency response: 40Hz-16KHz (-3dB) S/N ratio:>70dB(A) Distortion:<1% Power requirements: 2 AA type 1.5V batteries)

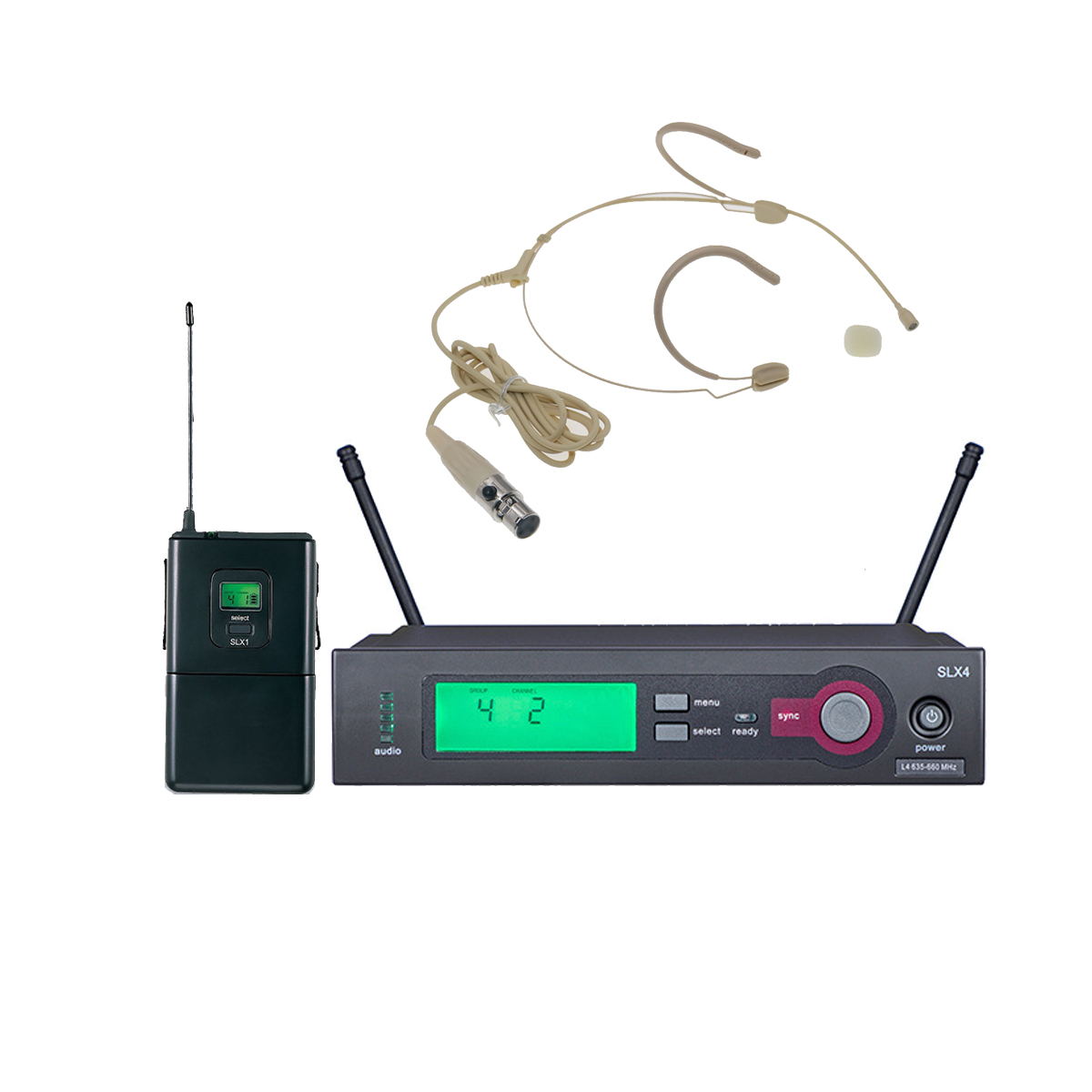

1 x SLX4 Receiver 1 x SLX1 BodyPack 1 x Audio transmission line 1 x Power adapter 2 x Antennas 1 x Operating instructions
