Product Description
rofessional AD4D-II
Digital Wireless Audio Microphone

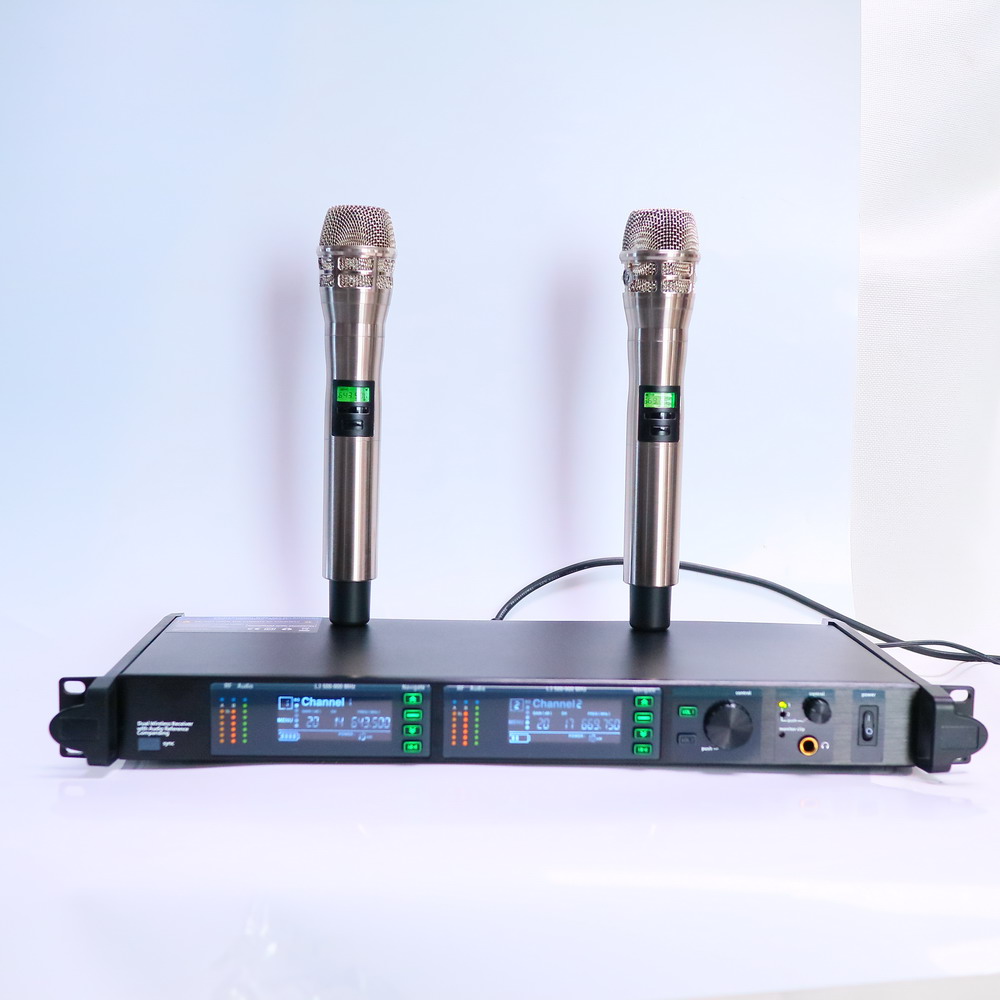

2x ADX2- KSM8 Handheld Microphones
(Silver Metal Handheld)
Cardioid Dynamic Capsule
Authentic High Quality Professional AD4D-II True Diversity Handheld
500m Large Range
Digital Wireless Microphone System
Best Sound Quality and Superlarge Range
AD4D Host with KSM8 Cardioid Dynamic Wireless System for Singers or Presenters
The First Choice for Both Sound Designers and Occasional Users Because of its Simplicity
Digital 2 Channel Receiver for Live Productions and Transmissions
Even in the thoughest environmets, Huge Spectral efficiency
with Equidistant frequency gird and true bit diversity.
Analog and Digital Outpurs (XLR, Jack)
High-Contrast LCD Display with LQI indicator
Live Performances Wireless 2 Silver color KSM8 Digital Handheld Microphones
MSRP: $2499.00
Brand New - Original Packaging
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.
AD4D-II Digital offers dual and quad receiver options that open the door to a full range of features, from high-performance RF to
transparent digital audio.
The AD4D-II Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide
tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked
control and signal routing options bring a new level of management and flexibility to your entire workflow.
Work environment :
500m Large unimpeded plaza/vocal concert ,
Complex harsh environment 200m Range (Rainy days are included)
1. True diversity, 2 Channel wireless handheld microphones, short circuit protection function; infrared automatic frequency
matching, pilot frequency function Four antenna signal strengthened reception (multi-level high-frequency filter design has strong
anti-interference ability and no noise)
2.1U standard chassis, metal panel, LCD liquid crystal display display working status, simple function operation.
3. High-fidelity audio transmission circuit, anti-drop, anti-vibration microphone core matching, sound clarity and high vocal
reproduction.
4. Hand microphone power consumption: 110MA, using imported DC conversion boost circuit low power consumption and high efficiency,
effectively extending the battery life. Radiant power: 16mW, use distance up to 500 meters in open environment. Complex harsh
environment Rainy 200m Range.
5. Use multiple squelch control circuits on the receiver to effectively prevent external signal interference. 300 channels (A
channel 001-150, B channel 151-300), no serial frequency or frequency drop when using multiple sets. Suitable for long-distance
projects, large and small performances and other occasions. 5. Equipped with anti-switch impact function to ensure the protection
of the output of the rear stage, and prevent the power amplifier and speakers from being impacted and burned.
6. The hand microphone has a battery level display, and the receiver also has a battery level display, which is convenient for
remote monitoring of battery usage and working status at a glance.
AD4D-II Digital Receiver:
Frequency range: 640-690MHZ
Maximum number of channels: 300
Bandwidth: 50MHz
Receiving sensitivity: -105dBm
S/N ratio: >70dB(A)
Distortion: <1% Audio output level: 8dBu max
External power supply: DC: 12-17V, 1A,
Oscillation mode: PLL phase locked loop
IF frequency: first IF: 110MHz, second IF: 10.7MHz
Antenna interface: TNC
Display mode: LCD
Sensitivity: -100dBm (40dB S/N)
Spurious suppression: >80dB
Audio output: unbalanced: +4dB (1.25V)/5KΩ
Balance: +10dB(1.5V)/600Ω
Supply voltage: DC12V Supply current: 450mA
ADX2-KSM8 Digital Handheld transmitter:
Frequency range: 640-690MHZ
Band width: 50MHZ
Harmonic suppression: >55dBc
Maximum frequency deviation: +_45KHZ
Frequency response: 40Hz-16KHz (-3dB)
S/N ratio: >70dB(A)
Distortion: <1%
Power requirements: 2 AA 1.5V batteries
Bodypack transmitter:
Frequency range: 640-690MHZ
Bandwidth: 50MHz
Harmonic suppression: >55dBc
Maximum frequency deviation: +_48KHz
Frequency response: 40Hz-16KHz (-3dB)
S/N ratio:>70dB(A) Distortion:<1%
Power requirements: 2 AA type 1.5V batteries)
transparent digital audio.
The AD4D-II Two-Channel Digital Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide
tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environments. Networked
control and signal routing options bring a new level of management and flexibility to your entire workflow.
Work environment :
500m Large unimpeded plaza/vocal concert ,
Complex harsh environment 200m Range (Rainy days are included)
1. True diversity, 2 Channel wireless handheld microphones, short circuit protection function; infrared automatic frequency
matching, pilot frequency function Four antenna signal strengthened reception (multi-level high-frequency filter design has strong
anti-interference ability and no noise)
2.1U standard chassis, metal panel, LCD liquid crystal display display working status, simple function operation.
3. High-fidelity audio transmission circuit, anti-drop, anti-vibration microphone core matching, sound clarity and high vocal
reproduction.
4. Hand microphone power consumption: 110MA, using imported DC conversion boost circuit low power consumption and high efficiency,
effectively extending the battery life. Radiant power: 16mW, use distance up to 500 meters in open environment. Complex harsh
environment Rainy 200m Range.
5. Use multiple squelch control circuits on the receiver to effectively prevent external signal interference. 300 channels (A
channel 001-150, B channel 151-300), no serial frequency or frequency drop when using multiple sets. Suitable for long-distance
projects, large and small performances and other occasions. 5. Equipped with anti-switch impact function to ensure the protection
of the output of the rear stage, and prevent the power amplifier and speakers from being impacted and burned.
6. The hand microphone has a battery level display, and the receiver also has a battery level display, which is convenient for
remote monitoring of battery usage and working status at a glance.
AD4D-II Digital Receiver:
Frequency range: 640-690MHZ
Maximum number of channels: 300
Bandwidth: 50MHz
Receiving sensitivity: -105dBm
S/N ratio: >70dB(A)
Distortion: <1% Audio output level: 8dBu max
External power supply: DC: 12-17V, 1A,
Oscillation mode: PLL phase locked loop
IF frequency: first IF: 110MHz, second IF: 10.7MHz
Antenna interface: TNC
Display mode: LCD
Sensitivity: -100dBm (40dB S/N)
Spurious suppression: >80dB
Audio output: unbalanced: +4dB (1.25V)/5KΩ
Balance: +10dB(1.5V)/600Ω
Supply voltage: DC12V Supply current: 450mA
ADX2-KSM8 Digital Handheld transmitter:
Frequency range: 640-690MHZ
Band width: 50MHZ
Harmonic suppression: >55dBc
Maximum frequency deviation: +_45KHZ
Frequency response: 40Hz-16KHz (-3dB)
S/N ratio: >70dB(A)
Distortion: <1%
Power requirements: 2 AA 1.5V batteries
Bodypack transmitter:
Frequency range: 640-690MHZ
Bandwidth: 50MHz
Harmonic suppression: >55dBc
Maximum frequency deviation: +_48KHz
Frequency response: 40Hz-16KHz (-3dB)
S/N ratio:>70dB(A) Distortion:<1%
Power requirements: 2 AA type 1.5V batteries)

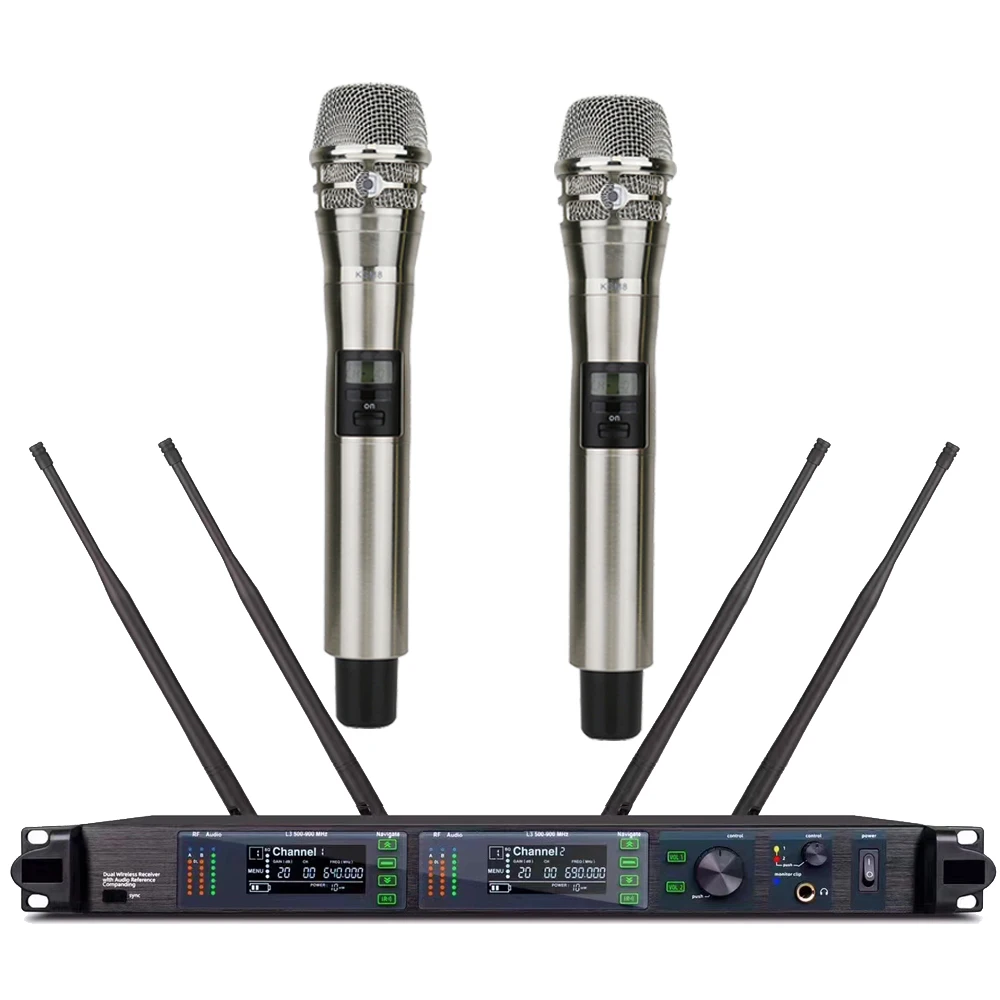

1 x AD4D-II Receiver
2 x KSM8 Handheld Microphone Transmitter
1 x Audio transmission line
1 x Power adapter
4 x Antennas
1 x Operating instructions
2 x KSM8 Handheld Microphone Transmitter
1 x Audio transmission line
1 x Power adapter
4 x Antennas
1 x Operating instructions
