MiCWL Square 30 Desktop Table Wireless Digital Conference Microphones System President Delegate Option Audio 30 Mics

List price： U.S.＄ 0.00

Price： U.S.＄ 0.00

Conference：

※1xController

※1xChairman unit

※1xDelegate unit

30sets: 1 Controller with 1 President 29 Delegate

40sets: 1 Controller with 1 President 39 Delegate

50sets: 1 Controller with 1 President 48 Delegate

60sets: 1 Controller with 2 President 58 Delegate

80sets: 1 Controller with 80 Delegate

Quantity：

Buy now

Add to cart

Product information

Product Description

Professional MICWL A10M - A115

Wireless Digital Conference System

2U 19" Rack Mountable Design

(1 Host Support up to 300pcs Gooseneck table Microphone working at the same time, please contact us if you need more Delegate Unit Microphones )

Package includes:

(1) 1x A10M Wireless Controller and Controller parts

(2) Wireless Desktop Base Microphone Unit option

(3) AC-DC adapter (100V-250V universal )

(4) Manual.

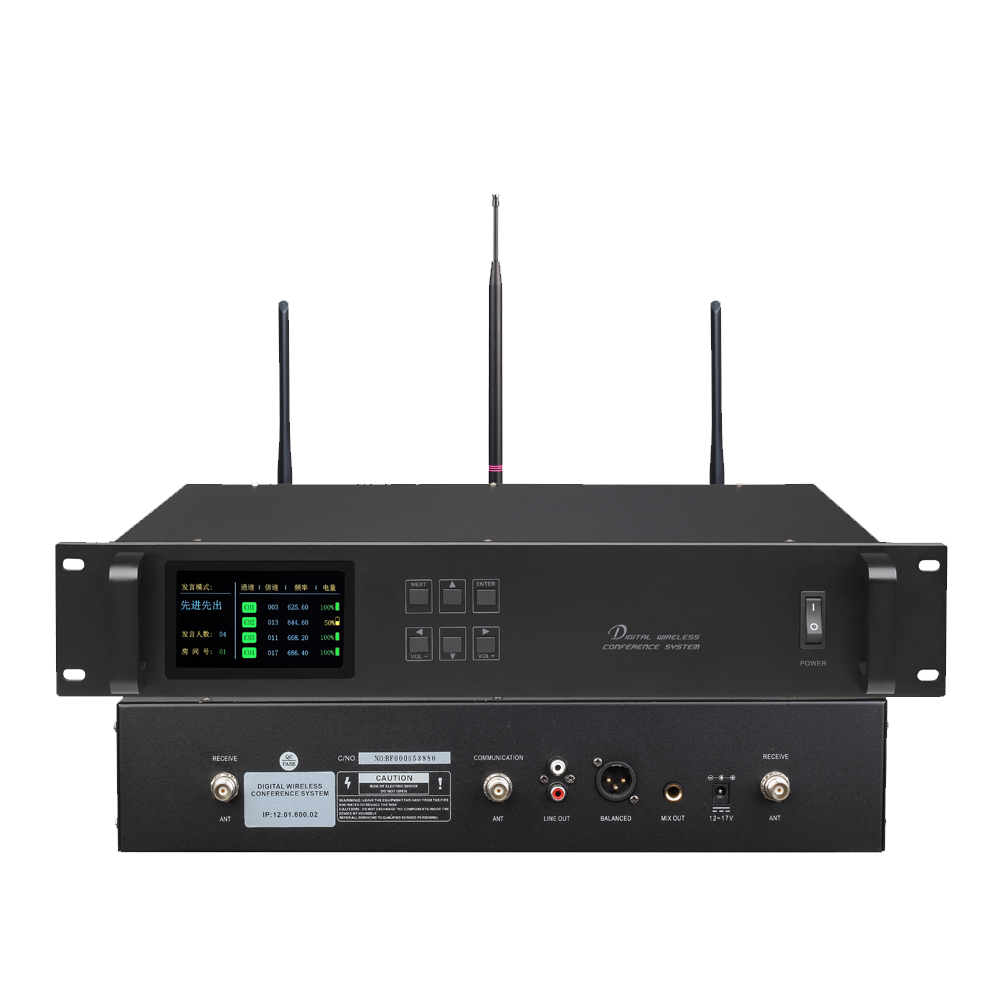

Controller Unit

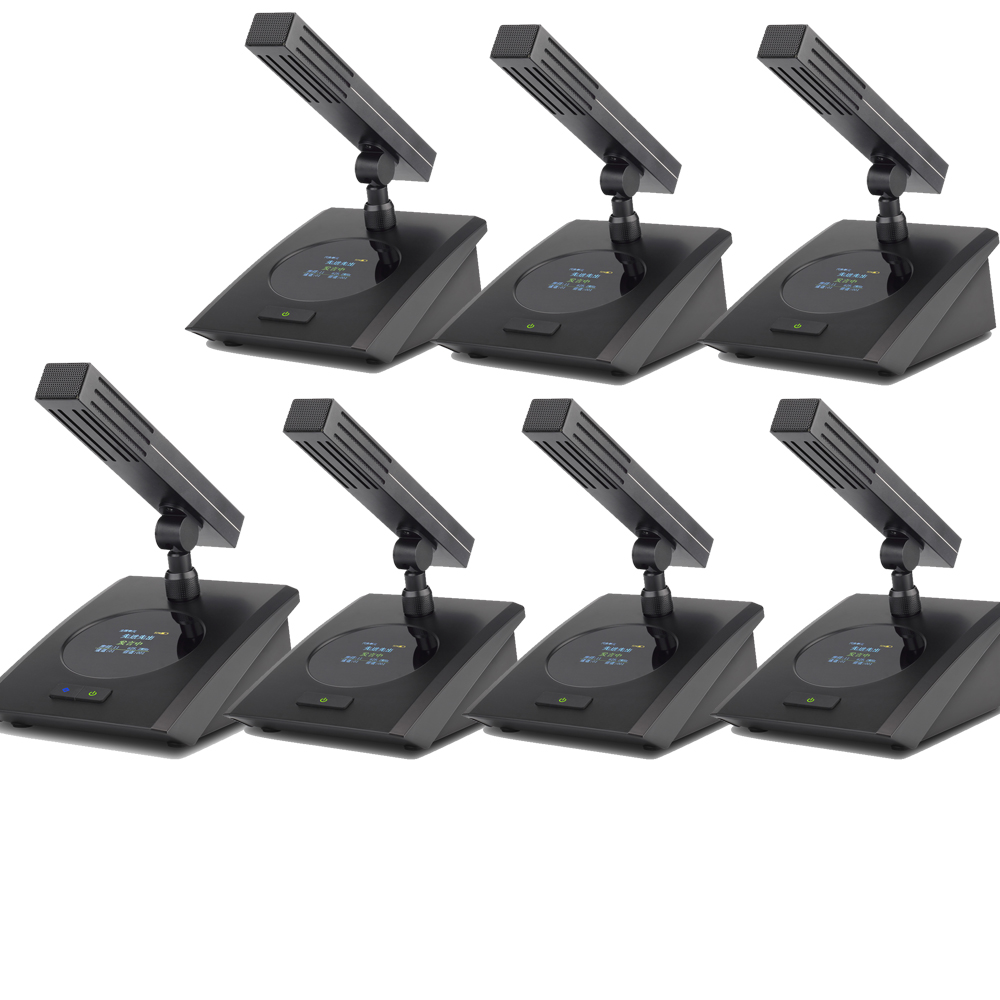

Desktop Microphone Unit

(1 Host Support up to 300pcs Gooseneck table Microphone working at the same time,

please contact us if you need more Delegate Unit Microphones )

Wireless Host Unit Description:

· Products using digital radio processing audio signals and control signals, without the cumbersome wires;

· Scientific IP and ID code design, ID: 001-008, IP: 001-160;

· Unlimited number of units can be placed anywhere in the loop;

· CPU multi-stage error correction and encryption scrambling. Prevent cross-channel interference and anti-cell phone electromagnetic interference;

· FIFO and having restrictions on speech, the President dedicated three kinds of speech patterns, while the number of speakers 1-4 persons Optional;

A host large screen (240X128) dot matrix LCD display work content. Hierarchical menu design, with volume control, speech patterns, the number of speakers, using the channel, EQ functions, communication and IP communication ID adjustment function, real-time display the number of speakers, the order of the channel, the channel position and power unit data;

· Chairman priority control function, limited by limiting function, can cut the representative;

Use distance: 100-120 meters, communication distance: 120-200 meters;

· 2U chassis design, can be installed in 19 inches

Power supply:DC 12V-17V

Sensitivity: -105dBm

S/N Ratio:>90dB

T.H.D:<0.05%Db

Max.deviation range:±45KHz

Working distance: about 100meter

Power:6.5W

Size:480*370*85mm

Weight:5KG

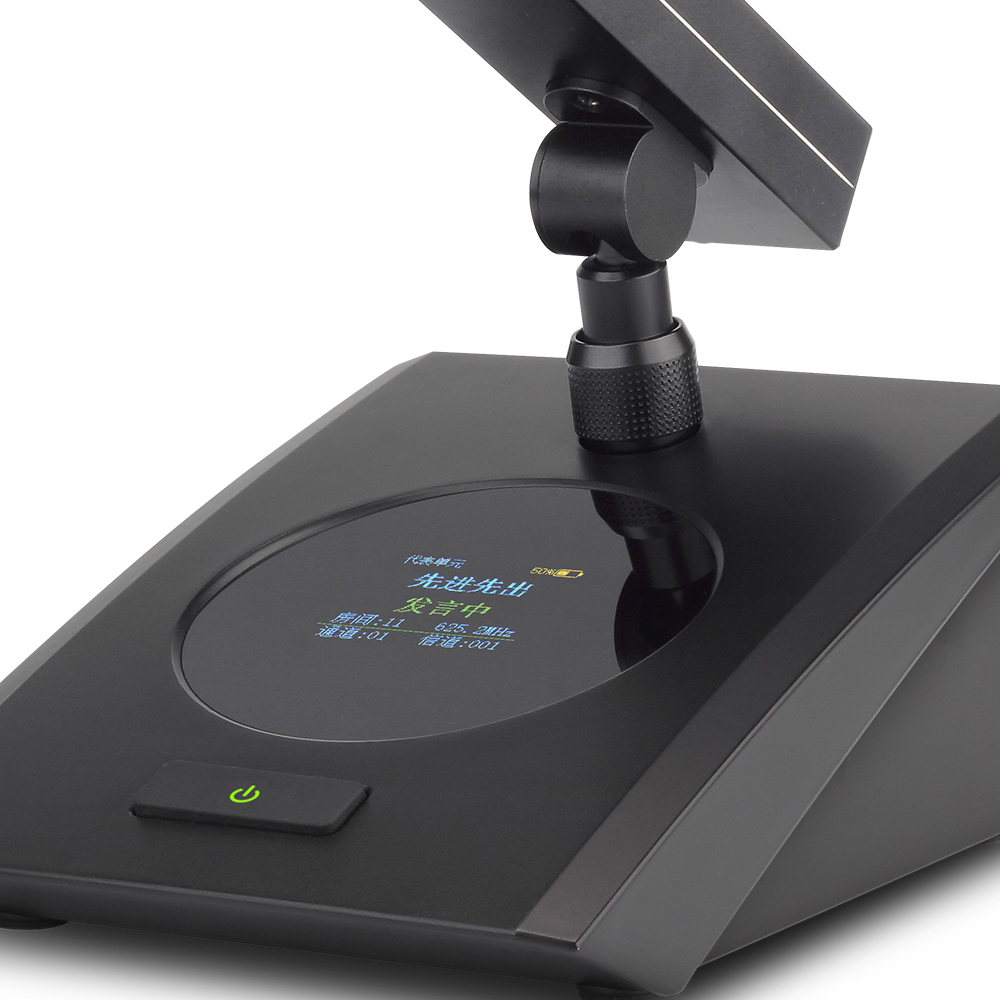

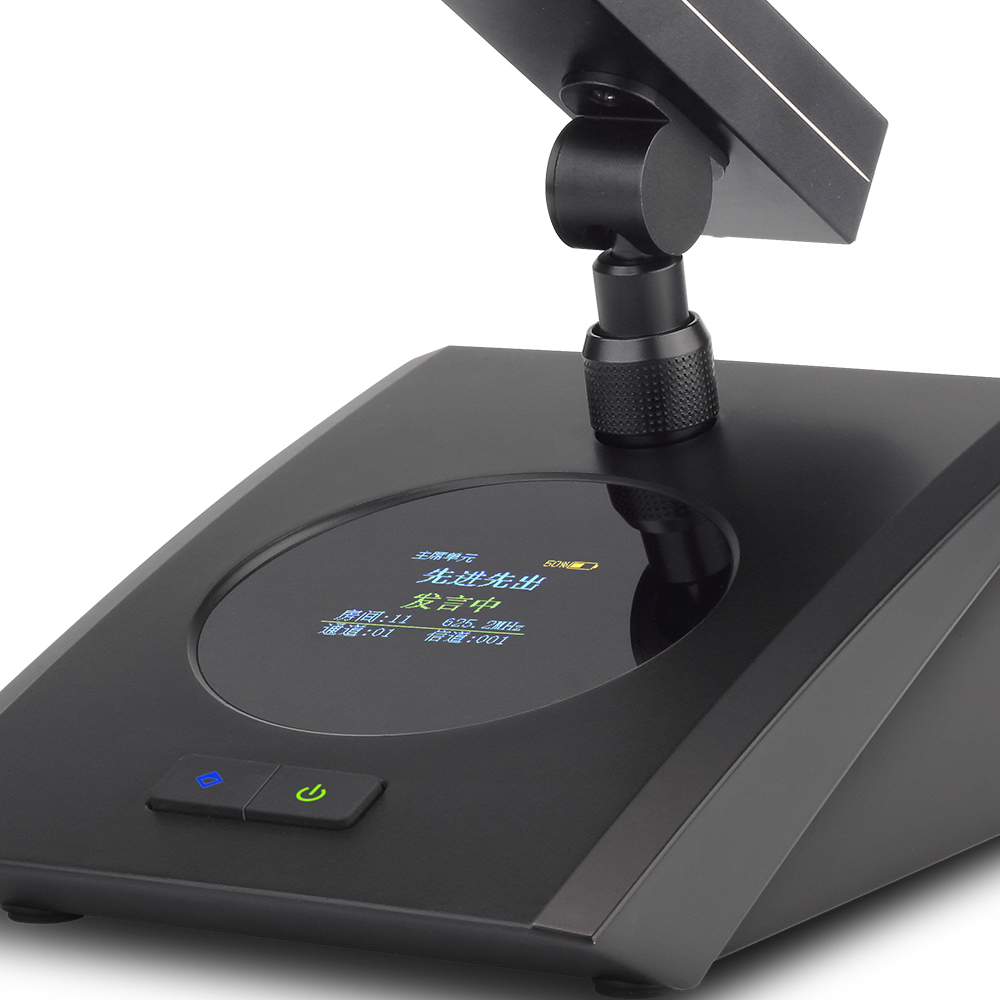

A115 Model: Wireless Chairman unit and Delegate unit Table Mic:

* Anti-electromagnetic, mobile phone interference function;

· LED Tip speech patterns, working conditions, low pressure indication and control buttons, etc. Chairman of the content information;

· Chairman unit has the priority function, limited by limiting function, can cut the representative;

· Gooseneck microphone pole design, the microphone has a light ring indicates power-on state;

· External transmitting antenna, the signal all directions, which do not appear out of control within the effective range;

Power supply:DC4.5V (1.5V AA*3) battery

Emission power:10mW

Maximum frequency deviation:±45KHz

Pickup head:condenser,single direction

Sensitivity:-45±2dB@1KHz

Frequency response:20Hz-18KHz

Power consumption:130mA

Size: 190*125*63mm

Weight: 850g

Please contact us if you need this system more information or need other system accessories (Mixer, Speaker, Sound Frequency shift etc ... )

Warranty：　

One Year Warranty Covered by MICWL Audio Inc.
