MiCWL Audio Inc.
MICWL A460M-RJ45 Table Digital Meeting Room
Wired Conference Microphone Mic System
- Video-tracking Type (can connect camera , camera not include)
- RJ45 (CAT5e/CAT6/CAT7) Network port
2 U 19" Rack Mountable Design Host
with A4630 Desktop Microphone
MICWL A460M-RJ45 Table Digital Meeting Room
Wired Conference Microphone Mic System
2 U 19" Rack Mountable Design Host
with A4630 Desktop Microphone
with LED Destop Microphone- Desktop
Authorized Dealer - Warranty By Manufacturer of MICWL Audio Inc.

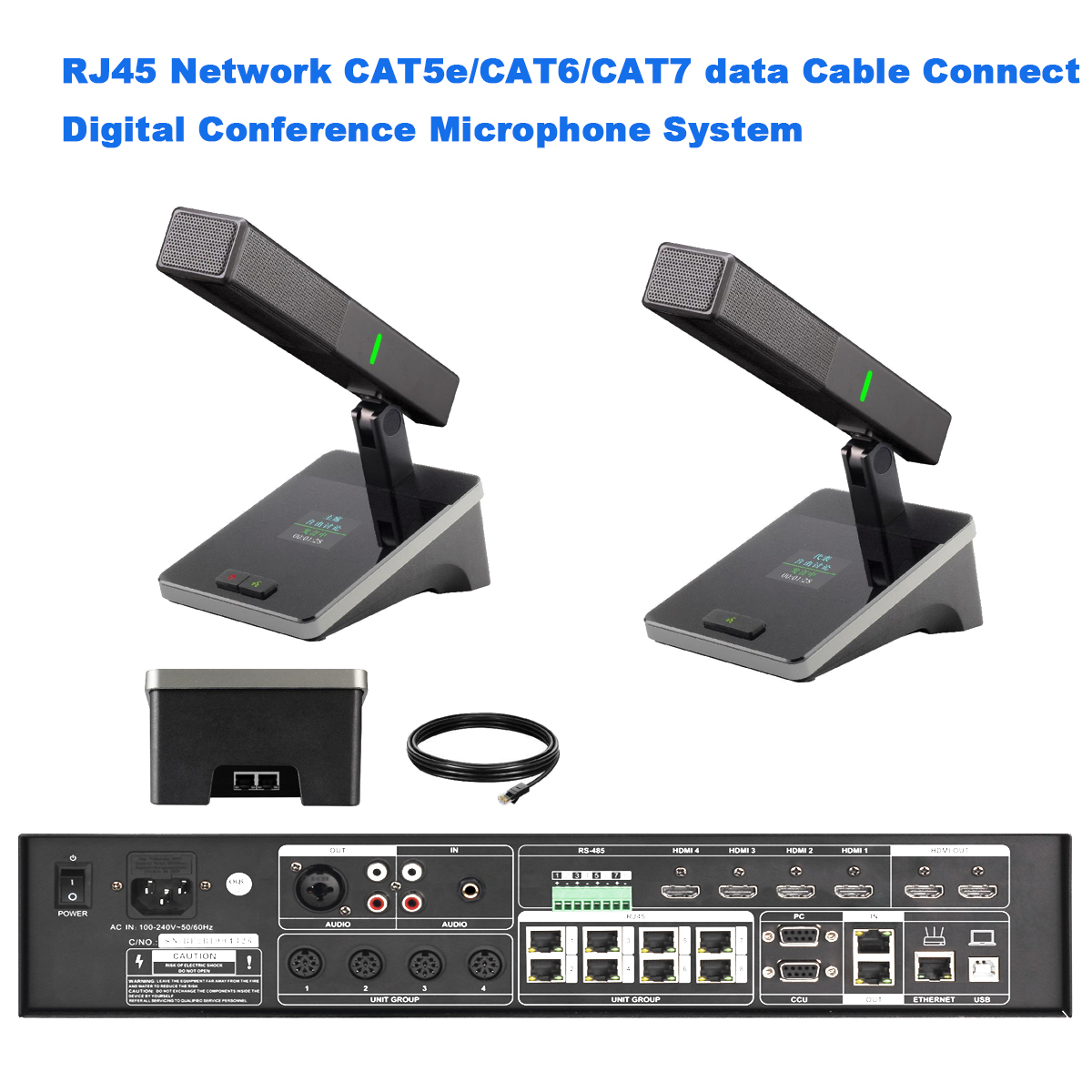

MiCWL A460M-RJ45 Host Unit description: (can connect to camera, camera not include.)
•4.3 inch TFT full color screen with touch function, so that human-computer interaction is very humanized;
• The use of graphical interface design, all the functional items and setting operation information and the basic information of the unit work at a glance, beautiful and stylish design;
• Full digital integrated circuit technology, conference discussion, video tracking function in one.
• Seven modes of speech: first in first out, last in first out, Chairman only, limited speech, free discussion, override rotation, request to speak.
• Number of speakers: 1-6 (optional), N (all open);
• Can support Chinese and English language switching, can be customized any language;
• High power supply, four parallel control output, can connect 120 conference units, and has load and short circuit protection function, can be connected to the expansion machine
• Host can be connected more than or equal to 160 meters;
• Built-in cascading system, the host and slave automatically realize the expansion function; 1 host control level online, easy to operate;
• The host has a dual-system hot backup system, and the host and slave are connected through TCP/IP network. Under normal circumstances, the host is in the working state, while the slave is in the monitoring state. Once the slave finds the host abnormal, the slave will take over the host in a short time to fully realize the functions of the host.
• The manual backup button is reserved on the front panel for one-click backup;
• The external router generates the local area network, and all functions on the host can be operated wirelessly by installing the interface software APP on the wireless mobile device;
• Can use PC interface through RS232, USB port or connect central control and host real-time communication, to achieve linkage operation;
• Built-in perpetual calendar, real-time synchronous display of the current time;
• Seamless switching of HD video matrix: 4 channels of HDMI video signal 4 inputs and 1 channel of video output, supporting HD signal. Three camera communication protocols, strong compatibility: Pelco_D, Pelco_P, VISCA;
• With intelligent power failure memory function, can remember the program running state, if an unexpected power failure, the power will be restored after the last setting.
• Provides 1 multi-function balanced/unbalanced output, 1 set of RCA line input and output for audio reinforcement output and external audio access.
• The system supports hot swap and can add or reduce units at will.
• Built-in AC110V~240V international general power supply and voltage regulator system to ensure the safe and stable use of voltage under unstable conditions.
Power supply: AC-100-250V 50/60Hz
Output impedance: RCA:200 Ohm LINE:200 Ohm
BALANCE:300 euros
UNBALANCE:400 euros
Input impedance: LINE:50K Ohm DIN:50K Ohm
SNR: 90dB (1KHz THD1%)
Chassis dimensions: 480X360X85MM
Accessories: 10M 8P shielded wire

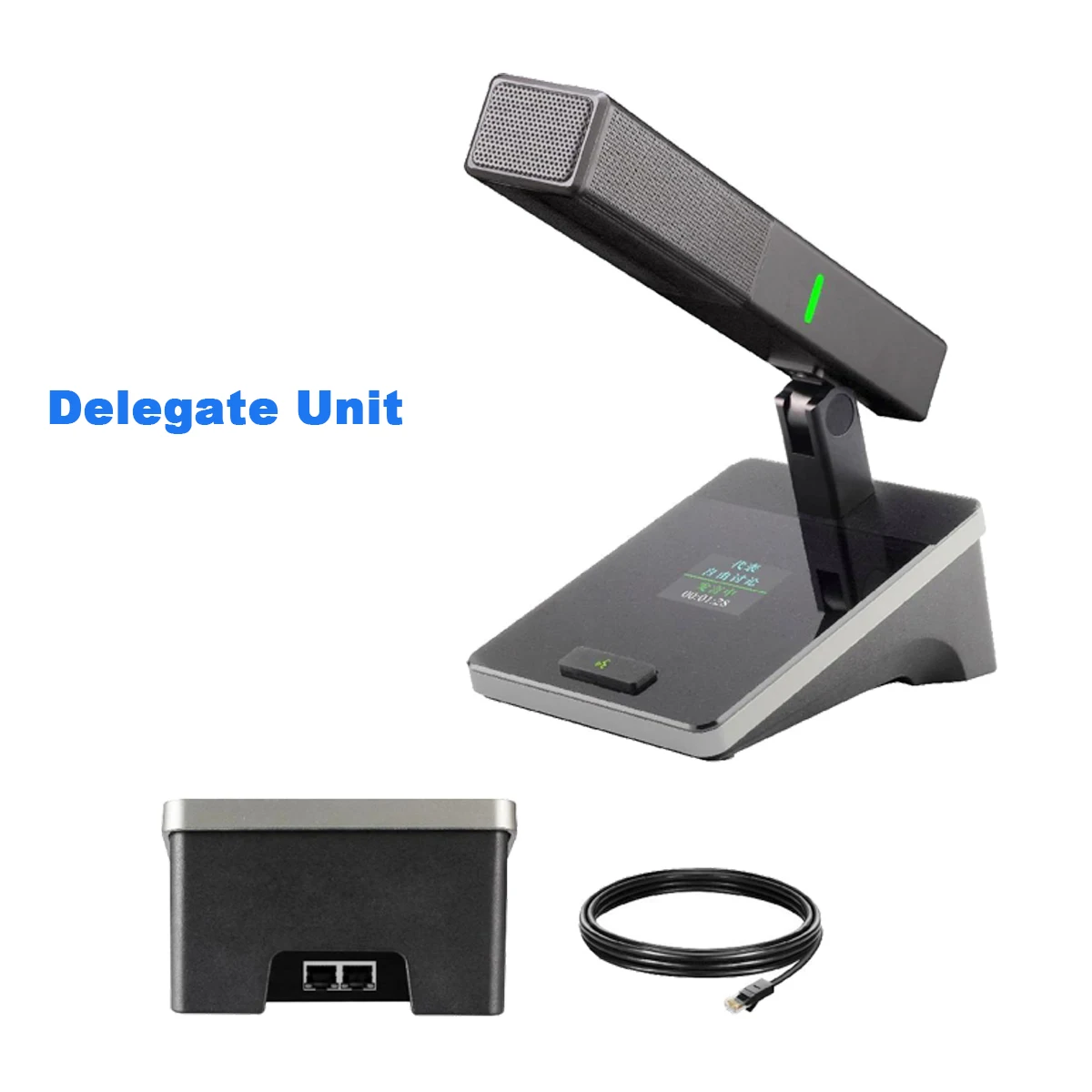

* TFT color screen displays system information, making all system control information at a glance.
* Intelligent digital design control circuit, each unit is powered by the system host, with low power consumption.
* The unit face shell is hierarchically matched, with the frame embedded with PVC lenses, presenting an overall high-end and
simple style that conforms to modern aesthetic standards.
* Fixed aluminum alloy square short microphone stand, with an up-down adjustable angle of 40 degrees, and the microphone stand
is equipped with a green speaking indicator light.
* High-fidelity, single high-directionality condenser microphone core, with clear sound when the speaking distance is 10-30 cm.
Equipped with a high-speed feedback suppressor, the picking-up distance can be further increased to 50 cm - 80 cm.
* The metal base has a streamlined design, providing a more stable usage experience.
* The units with network cable interfaces use super category 6 network cables, adopting a "hand-in-hand" connection method, with
two RJ45 interfaces and anti-loosening sleeves.
* The chairperson unit is not limited by the number of speakers.
* The chairperson unit has the priority function to fully control the meeting order.
* The connection position of the chairperson unit is not restricted.
* One system can support multiple chairperson units to be used simultaneously.
* It adopts a "hand-in-hand" connection method, supporting hot plugging, which is convenient for installation and maintenance.
Packing include:
(1) 1x MiCWL 1x A460M-RJ45 Wired Digital Conference Controller
(2) MiCWL A4630 Table Unit
- ( Chairman + Delegate or all Delegate Desktop Microphone )
(Please leave meesage or contact us)
(3) 1x AC-DC adapter (100V-250V universal )
(4) 1x Manual.
(5) 1x 10m Cable
One Year Warranty Covered by MICWL Audio Inc.
